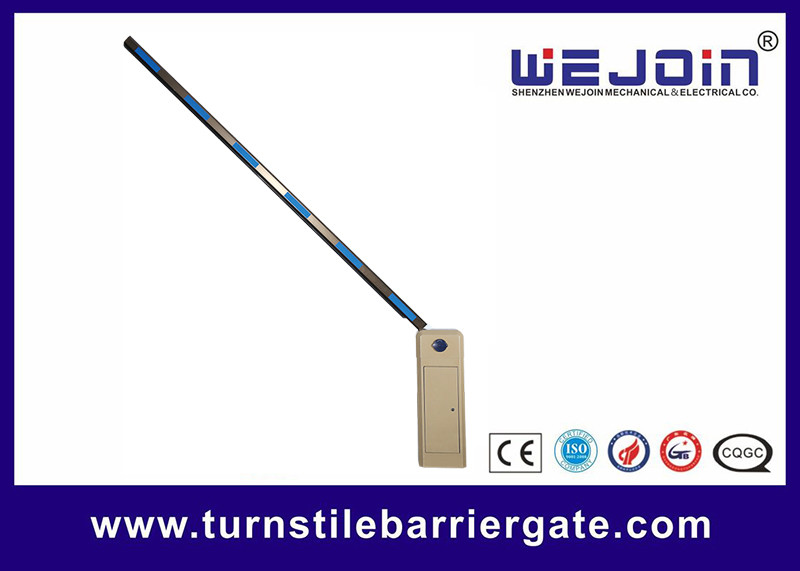

100W Vehicle Barrier Gate Steel Housing 8m Boom Remote Control

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Speed: 1S; 1.8S; 3S; 6S Color: Orange, Gray, Black, Etc
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Max Boom Length: 8metes COM Interface: RS485
High Light:

Vehicle Barrier Gate Steel Housing

,

100W Vehicle Barrier Gate

,

8m Boom Remote Control Parking Barrier


Product Description

Automatic Vehicle Barrier Gate with Remote Control



Barrier Gate Specification

Model type
DZ102 barrier gate
Input power
220AC/AC110 50/60HZ
Rated power
100W
Protection grade
IP65
Motor temperature
-40℃ to 80℃
MTBF
5 million cycles
Input Interface
+ 12V signal or pulse width 100MS pulse signal
Color
Conventional orange and gray support custom



Parking Barrier Gate Features:

  • A professional road barrier for the light-medium traffic situation
  • Constructed with an aluminum alloy chassis
  • Can be mounted on either the left or right-hand side of the roadway
  • Advance mechanical movement by 2-level bevel and worm reduction gear makes the raising level to work steadily safely.
  • Dual electronic and mechanical limit design and adjustable limit switch
  • Embed the blue warning light in the barrier arm
  • Input terminal for photocell (optional) and auto-reverse in case of obstacle during barrier arm up or down
  • Fast and easy manual release
  • Equipped with an external keypad for the user to operate conveniently
  • The optional articulated arm, double deck, and three-ply deck
  • The boom support is provided if the arm length is 5-6m (20ft)



WEJOIN Company

From raw materials to spare parts, as well to finished products, WEJOIN is currently the only domestic enterprise that adopts large-scale intelligent manufacturing in the entire industry chain. With the industry 4.0 standard as the goal, WEJOIN will realize informationized and unmanned production, continue to increase the development of new technology and the investment of intelligent automation equipment for barrier gates, improve the manufacturing accuracy, operating life, and stability of the barrier gates, and make them more convenient, more intelligent and more reliable.
