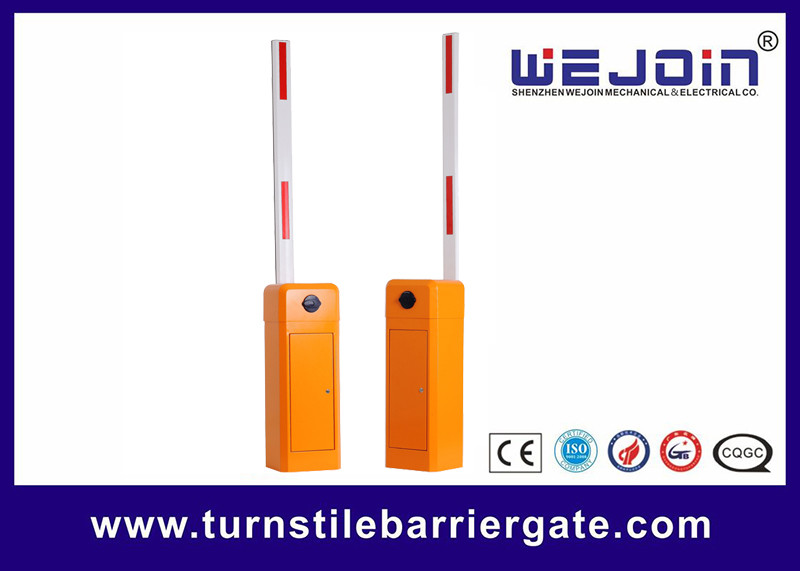

Humanized Clutch Parking Lot Barrier Gate IP54 RS485 Infrared Photocell

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Speed: 1S; 1.8S; 3S; 6S Color: Orange
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Max Boom Length: 8 Metes COM Interface: RS485
High Light:

Humanized Clutch Parking Lot Barrier Gate

,

Parking Lot Barrier Gate IP54

,

Infrared Photocell Traffic Boom Barrier


Product Description

Parking Lot Gate Barrier Automatic Boom Barrier Gate Traffic Barrier



Production  Series

Model

Description

Max boom

length

(L≤meter)

Action time (second)

Boom height

(meter)

WJDZ1XX/A

Slow speed, straight

L≤6 m

6

0 .83

WJDZ1XX/B

Medium speed, straight

L≤4 .5 m

3

0 .83

WJDZ1XX/C1

90° Folding boom

L≤5 m

6

0 .83

WJDZ1XX/C2

180° Folding boom

L≤5 m

6

0 .83

WJDZ1XX/D

Quick speed

straight boom

L≤3 m

1

0 .83

WJDZ1XX/E1

Fence boom

L≤4 .5 m

6

0 . 9

WJDZ1XX/E2

Fence boom

L≤4 m

6

1 . 5

Notice: The "Boom Height" means height from the boom holding point to the ground



Functions and Features

1) The humanized clutch device: In case of power off, unlock the clutch device and raise the boom manually. By the time the power is supplied, lock the clutch device to make it work normally again.
2) Special spring device: Both the compression spring and tension spring can be used in the machine. Using the compression spring can avoid accidents caused by the tension spring.
3) Three control buttons: for boom raising, falling, and pausing.
4.) Boom backtrack function: the boom will rise if it hits something when falling.
5) Infrared photocell design: for avoiding the crash when the boom falls, so as to prevent the vehicles from being pressed.
6) Both external and internal loop detectors are supported.
7) 'Open','Close'and'Stop' controlling interfaces.
8) RS-485 communication serial interface (optional).
9) Traffic light signal connection device: red light for the stop; green light for the pass.
10) Remote control and wire control for selection.


WEJOIN's Main Advantages

1. The global leading company for barrier gate

2. Master of core technology and innovation

3. The intelligent quality manufacturing process and automatic flexible production

4. The global advanced manufacturing process and testing equipment

5. Servo, variable frequency, double speed,bi-direction motor, and other leading technique

6. High speed and low speed coexist in motor

7. Integral service network covering first-tier and second-tier cities, and more under the construction service network
