| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO, |
| Model Number: | WJDZ102 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiation |
| Packaging Details: | Carton,wooden box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 Units / Month |
| Speed: | 1S; 1.8S; 3S; 6S | Color: | Orange |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Housing Material: | Steel |
| Max Boom Length: | 8 Metes | COM Interface: | RS485 |
| High Light: | Auto Closing Parking Barrier Gate,Anti Bumping Parking Barrier Gate,Boom 8m Vehicle Barrier Gate |
||

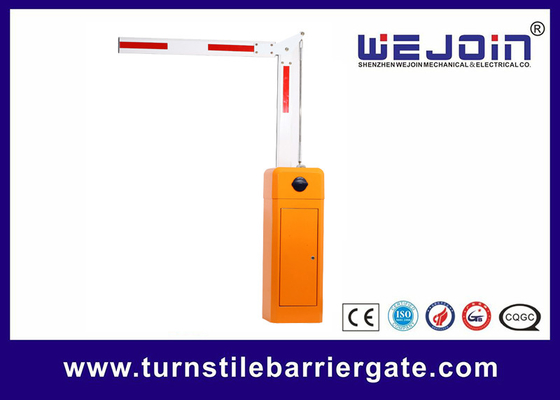

1S high-speed access control system parking barrier gate for driveway
Boom Barrier Feature and Function
Manual release
Machine core with compression spring effectively avoids the accidents caused by spring break.
Die-casting aluminum alloy motor, precision, and good at thermal radiating.
Motor cooling fan, solving the problem of heat-protection
Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
reversing on an obstacle
Auto-closing
Support the infrared photocell for anti-bumping(optional)
OUR SERVICES
|
1. Your inquiry related to our products or prices will be replied to in 12 hours. |
|
2. Well-trained and experienced staff to answer all your inquiries in fluent English. |
|
3. OEM&ODM, any your customized we can help you to design and put into product. |
|
4. OEM&ODM welcome under competitive price but high quality. |
|
5. We have our professional R&D, produce the products according to your requests. |
Operation and Maintenance Requirements
Please do not disassemble the device privately.
Please use the accessories or attachments of the manufacturer for installation and maintenance by professional service personnel.
Please do not provide two or more power supply methods to the device at the same time, otherwise, the device may be damaged.
The self-contained boom is not allowed to be lengthened or cut off, and it is also not allowed to add weight to the boom privately.
Straight boom installation
Step 1. Fix the boom holder pressboard on the boom with 2pcs of M12*70mm hexagon screw.
Step 2. Press the board by hand, then lift up the boom vertically and install it on the boom holder.
Step 3. Install the flat washer, spring washer, and M12 nut on the screw in turn, and fix the screw with a wrench.
