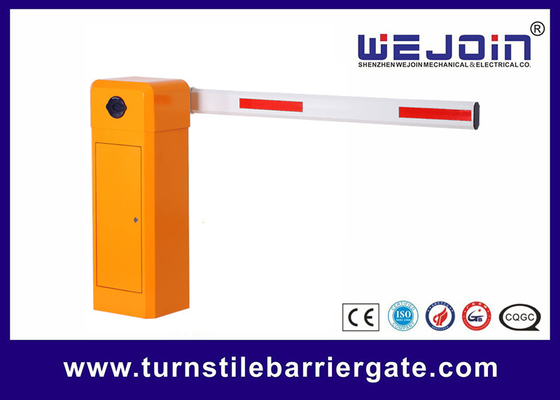

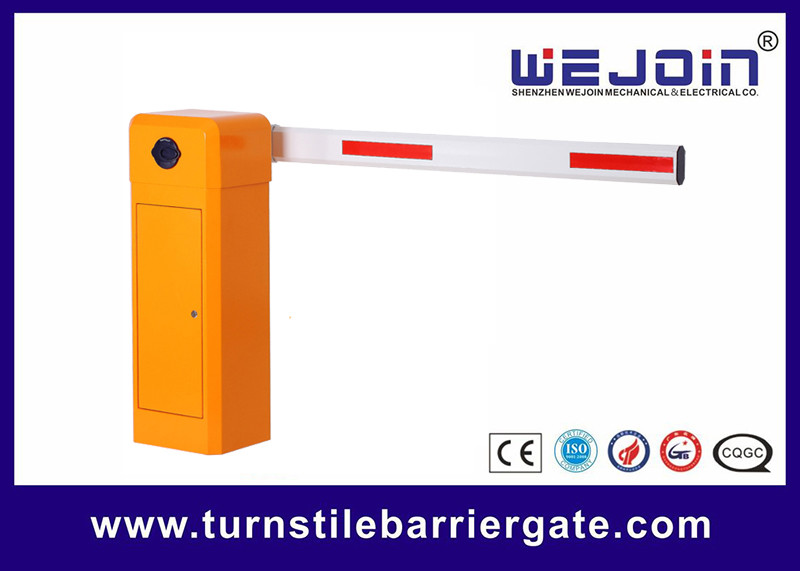

RS485 Access Control Toll Gate Auto Reversing Straight Barrier Gate

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Speed: 1S; 1.8S; 3S; 6S Color: Orange
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Max Boom Length: 8 Metes COM Interface: RS485
High Light:

RS485 Access Control Toll Gate


Retractable Arm Toll Gate


Auto Reversing Straight Barrier Gate

Product Description

Access Control Automatic Car Parking System Barrier Gate Straight Barrier Gate


Parking Barrier Functions and Features

1. Manual advanced clutch, to rise up the boom by hand when power off, it will auto-reset when power on.

2. Adopts the compression spring for safety precaution to avoid accidents caused by the spring broken.

3. Three buttons to control the boom to rise up or fall or stop.

4. Auto-reversing when meets obstacles.

5. Available for the internal and external loop detector.

6. Opening, closing, and stopping to control the interface.

7. Infrared photocell for anti-bumping.

8. RS485 communicational module to connect the computer.

9. Traffic lights interface.

10. Wire control and remote control.

11. Auto warming up when the system is below zero degrees centigrade.


Barrier Gate Technical Data

1. Working temperature (motor): -35℃~ + 70℃

2. Power supply: 220V±10% 50/60 Hz; 110V±10% 50/60 Hz

3. Net weight: 60 Kg

4. Rated power: 120W

5. Relative Humidity: 30%~80%, No condensation

6. Distance of remote control: L≥30M
