Die Casting Parking Boom Gate Infrared Photocell RS485 Drop Arm Barrier Gate

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Speed: 1S; 1.8S; 3S; 6S Color: Orange
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Max Boom Length: 8 Metes COM Interface: RS485
High Light:

Die Casting Parking Boom Gate


Infrared Photocell Parking Boom Gate


RS485 Drop Arm Barrier Gate

Product Description

Boom Barrier Gate System High-Speed Drop Arm Barrier Gate for Car Parking Management


Parking Barrier Spring selection

The spring is a stretchable one and the specification is as follows:

Spring type Diameter Spring length
Small size 4.5MM 280MM
Medium size 5.5MM 280MM
Big size 6.5MM 280MM


Toll Gate Functions and features

1. Manual advanced clutch, to rise up the boom by hand when power off, it will auto-reset when power on.

2. Adopts the compression spring as a safety precaution to avoid accidents caused by the spring broken.

3. Three buttons to control the boom to rise up or fall or stop.

4. Auto-reversing when meets obstacles.

5. Available for the internal and external loop detector.

6. Opening, closing, and stopping to control the interface.

7. Infrared photocell for anti-bumping.

8. RS485 communicational module to connect the computer.

9. Traffic lights interface.

10. Wire control and remote control.

11. Auto warming up when the system is below zero degrees centigrade.


Barrier Gate Working environment and data

1. Mechanism temperature -25℃+85℃

2. Control board temperature -20+85℃

3. Power supply 220V±10% 50/60 Hz

110V±10% 50/60 Hz

4. Rated power 120W

5. Relative humidity ≤90%

6. Remote control ≥30M

7. Net weight 60 Kg

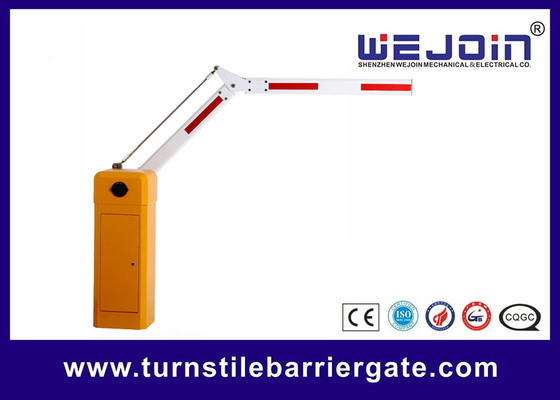

Die Casting Parking Boom Gate Infrared Photocell RS485 Drop Arm Barrier Gate 0
