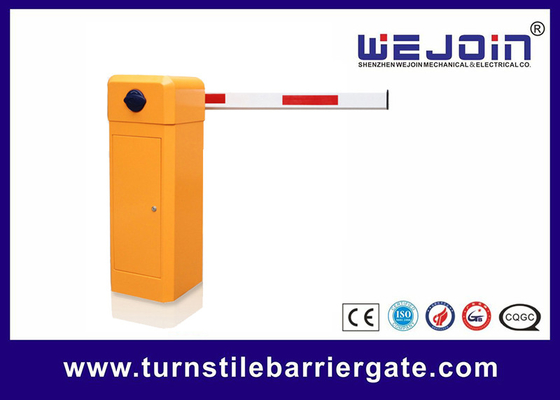

RS485 Traffic Toll Barrier Gate 1 Sec Alloy Motor Parking Equipment

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Speed: 1S; 1.8S; 3S; 6S Color: Orange
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Max Boom Length: 8 Metes COM Interface: RS485
High Light:

RS485 Traffic Toll Barrier Gate

,

1 Sec Toll Barrier Gate

,

Alloy Motor Parking Lot Barrier Gate


Product Description

Parking equipment automatic traffic toll barrier gate for vehicle access



Barrier Gate Item Selection

Model 102-11 102-13 102-16
Running time 1sec 3 sec 6sec
Boom type straight
Max boom length 3m 4.5m 6m



Barrier gate Spring installation

1. Place the selected spring in the spring cabinet

2. Put the spring and spring cabinet into the spring supporter

3. Place the threaded pole into the spring cabinet and fasten it with the necessary screws in the right hole.

4. Place the baffle ring and adjust the screw to the bottom of the spring, and then adjust it to make it balance the weight of the boom.



The change of the spring

1. Make the boom at its vertical position, cut off the power and then unlock the clutch, the boom should be at its up limit and stable.

2. Disassembly of the baffle ring and the adjusting screw

3. Make the boom at its horizontal position by hand, unscrew the screw and take off the threaded pole

4. Unscrew the screw to take out the spring cabinet and then put it in the selected spring.

Then repeat operation B to install the spring.



WEJOIN's Main Advantages

1.The global leading company for barrier gate

2.Master of core technology and innovation

3.The intelligent quality manufacturing process and automatic flexible production

4.The global advanced manufacturing process and testing equipment

5.Servo, variable frequency, double speed,bi-direction motor, and other leading technique

6. High speed and low speed coexist in motor

7.Integral service network covering first-tier and second-tier cities, and more under the construction service network
