| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO, |
| Model Number: | WJDZ102 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiation |
| Packaging Details: | Carton,wooden box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 Units / Month |
| Speed: | 1S; 1.8S; 3S; 6S | Color: | Orange |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Housing Material: | Steel |
| Max Boom Length: | 8 Metes | COM Interface: | RS485 |
| High Light: | Infrared Photocell Boom Barrier Gate,1.8S Boom Barrier Gate,RS485 Steel Car Parking Barrier |
||

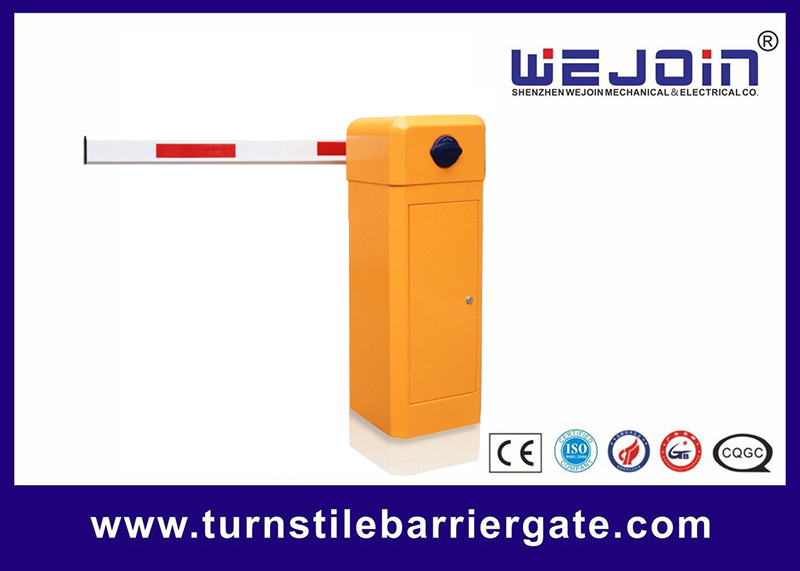

High Speed Boom Barrier Gate with Infrared photocell for Parking Access
Barrier Gate Item Selection
| Model | 102-11 | 102-13 | 102-16 | 102-23 | 102-26 | 102-33 | 102-36 |
| Running time | 1sec | 3 sec | 6sec | 3 sec | 6 sec | 3 sec | 6sec |
| Boom type | straight | 90-degree folding | 180-degree folding | ||||
| Max boom length | 3m | 4.5m | 6m | 3m | 5m | 3m | 5m |
Common malfunction and handling
1. The boom has no reaction though the motor is running
Solution: check whether the clutch is locked
2. The boom vibrates too much at its limit position
a. check whether the shock absorption is broken
b. check whether the spring is broken
3. The boom can not operate to the limit position
a. does not adjust the spring when changing the boom length
b. the sensor does not connect well
c. the boom type selection is wrong
4. The shorten the distance of the remote controller
a. Lacking battery
5. The boom has no reaction when pressing the button
a. check whether the power is well-connected
b. check whether the fuse is broken
c. make sure the coding of the remote control and the receiver are the same.
6. The motor does not work after the user changes the control board
a. check whether the capacitor is well-connected
b. check whether the fuse is well connected
7. The boom act abnormal after the user changes the control board.
a. Check whether the switch of the boom type selection is in the right position.
WEJOIN's Main Advantages
1. The global leading company for barrier gate
2. Master of core technology and innovation
3. The intelligent quality manufacturing process and automatic flexible production
4. The global advanced manufacturing process and testing equipment
5. Servo, variable frequency, double speed,bi-direction motor, and other leading technique
6. High speed and low speed coexist in motor
7. Integral service network covering first-tier and second-tier cities, and more under the construction service network
