LED Display Full Height Turnstile Security Ent

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJFT610
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
Smart Card: IC ,ID ,Magcard ,bar Code Material: 304 / 202 / Cold Rolling Iron Painted
Volatge: 110v/220v Type: Automatic Turnstile
Package: Wooden Working Tempraturen: -10°C~50°C
High Light:

access control barrier


turnstile security systems

Product Description

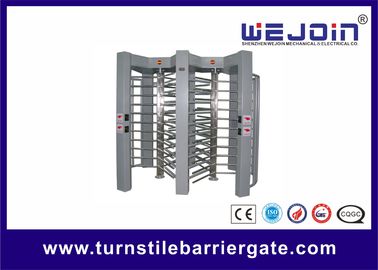

Stainless steel Security barriers full height turnstile for access control





1. Compatible with several control devices such as IC, ID, magcard, bar code and so on.

2. Unlocking is quick and reliable.

3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.

4. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.

5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.

6. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.

7. Counting Function of the controller, LED figure display function (optional)
8. Memory Function attached in the controller
9. With standard input, output interface




Model WJFT601 WJFT602 WJFT610 WJFT611
Material of Housing 201 / 304 Stainless Steel
Thickness of Housing 2.00mm
Dimension of Housing 1630×1500×2300 1400× 2800× 2150×
(L×W×H mm) 1200×2300 1813×2400 1260×2300
Length of Pole 610mm 470mm 610mm 470mm
(out of framework)
Net Weight 170kg 250kg 650kg 560kg
Max Load-bearing of Pole 80kg 30kg 80kg 30kg
Driving Force of Pole 3kg
Produce Processing Laser cutting fully controlled by computer
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Transmission of Pole Digital Transmission
Light Indicator Direction indicating
Rotating Direction Single Direction, Double Direction (optional)
Time for Opening 0.2 second
Communication Interface Standard RS485 (distance less than 1200 meters)
Input Interface Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
Transit Speed 30~40 persons/min
Working Environment Indoor / Outdoor (Shelter)
Working Temperature -10°C~50°C
Relative Humidity ≤90%, no condensation
