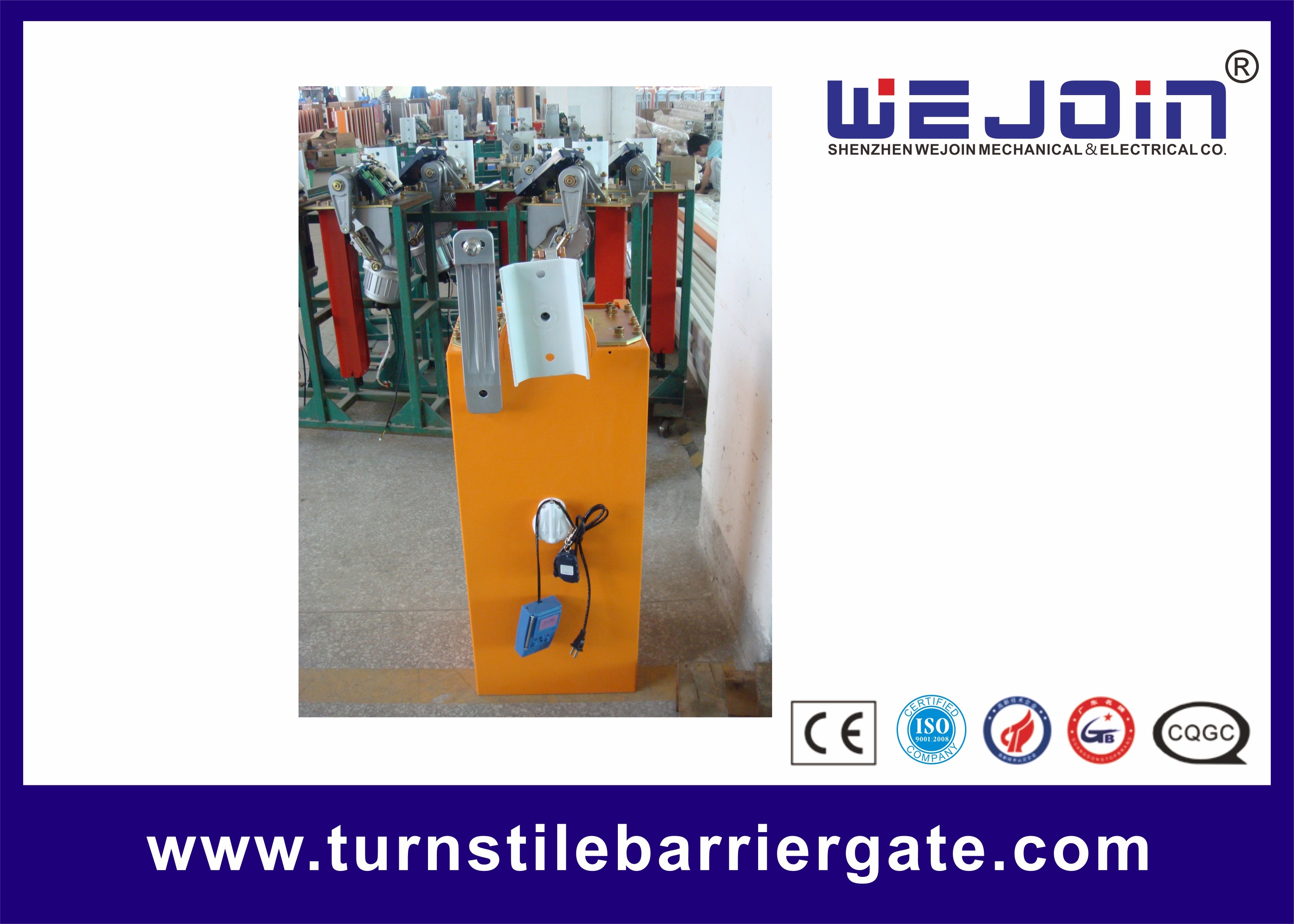

High-Speed Manual Boom Barrier Gate For Highway Toll/parking system
Quick Detail:
Name: High-Speed Barrier Gate
Application: Highway toll
Speed:1 second
Feature: Manual release
Rated Power:80W
Certificate: CE, ISO,
Net Weight: 60KG
Voltage: AC220V, AC110V
Description:
Model Selection and Differences
Model |
Boom Shape |
Max Boom Length |
Speed |
WJDZ10216 |
Straight boom |
6m |
6 seconds |
WJDZ10213 |
Straight boom |
4.5m |
3 seconds |
WJDZ10211 |
Straight boom |
3m |
1 second |
WJDZ10226 |
90 degree, Articulated boom |
5m |
6 seconds |
WJDZ10223 |
90 degree, Articulated boom |
3m |
3 seconds |
WJDZ10236 |
180 degree, Articulated boom |
5m |
6 seconds |
WJDZ10233 |
180 degree, Articulated boom |
3m |
3 seconds |
WJDZ10246 |
Two-level, fence boom |
4.5m |
6 seconds |
WJDZ10256 |
Three-level, fence boom |
4m |
6 seconds |
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
Applications:
Fast Barrier Gate adopts special machine core, swing away boom holder, and boom. This barrier gate runs at high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
Specifications
Model |
WJDZ102 |
Working Temperature |
-40℃~+75℃ |
Voltage |
220V±10%, 110V±10%, 50/60HZ |
Rated power |
80W |
Relative humidity |
≤90% |
Remote control distance |
≥30m |
Net weight |
60kgs |
Speed |
1S |
Max boom length |
3 meters |
