Semi-automatic Vertical - type Tripod Turnstile Iron With Powder

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: SO,CE
Model Number: WJTS111S
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
Semi Or Full-automatic: Semi-automatic Material Of Housing: Iron With Powder
Thicness Of Housing: 1.5mm Dimension Of Housing: 420*380*1050
Length Of Pole: 490mm Net Weight: 45kg
Max Load-bearing Of Pole: 80kg Driving Force Of Pole: 3KG
High Light:

pedestrian security gates


pedestrian access control

Product Description

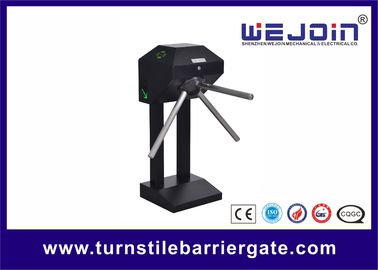

 Vertical - type Tripod Turnstile Iron With Powder


Quick Detail:

Name: Semi-automatic Tripod turnstile

Driving Motor: Brushless DC Motor

Power Supply: 220V±10%, 110V±10%

Transit Speed: 30~40 persons/min

Rated Power: 36W

Rotating Direction: Double Direction


Function and Features:

①. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism

②. Passable for bi-direction

③. Self-locking within 5 seconds if there is no one passing after signal activation

④. Arm auto dropping when power off and manually put the arm up when power on

⑤. Person counter output is available to indicating passenger quantity; the pulse is 200MS

⑥. Able to avoid unauthorized access

⑦. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation

⑧. Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with a pulse between 200MS~500MS; EM signal should maintain connected when an emergency happens.

⑨. Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.

⑩. Emergency Alarm interfaces available for alarm equipment under 12W or DC12V





Manual, Semi or Full-automatic


Material of Housing

Iron with Powder

Thickness of Housing


Dimension of Housing
(L×W×H mm)


Length of Pole (out of the housing)


Net Weight


Max Load-bearing of Pole


Driving Force of Pole


Rotating Direction

Double Direction

Power Supply

220V±10%, 110V±10%



Working Voltage of Motor


Rated Power


Driving Motor

Brushless DC Motor

Input Interface

dry contact with the pulse between 200ms~500ms

Transit Speed

30~40 persons/min

Working Temperature


Working Environment

Indoor / Outdoor (Shelter)

Relative Humidity
