Car park security boom parking lot barrier gate with access control

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ301
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Boom Type: Straight Arm; Folding Arm; Fence Arm COM Interface: RS485
Motor Material: Die-casting Aluminum Alloy Color: Optional
Max Boom Length: 8 Metes Voltage: 110v/220v
High Light:

electric barrier gate


vehicle access control barriers

Product Description

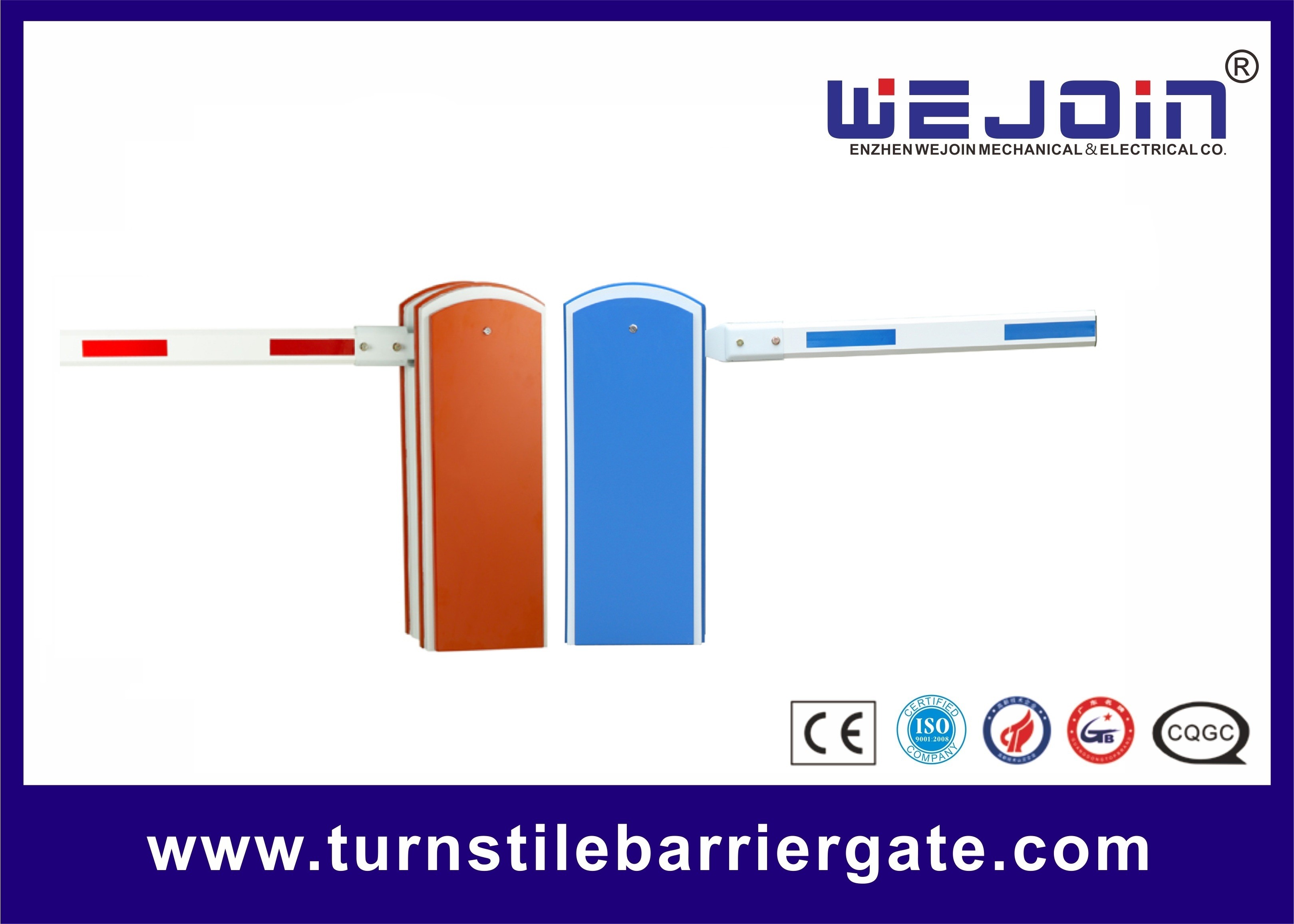

Blue Bi - directional Car Park Boom Barrier Gate , Entrance Gate Security Systems


Quick Detail:

  1. *Name: Bi-directional Barrier Gate

  2. *Application: Highway toll

  3. *Speed;3/6 second

  4. *Feature; Manual release

  5. *Rated Power; 80W

  6. *Certificate; CE, ISO,

  7. *Net Weight; 60KG

  8. *Voltage; AC220V, AC110V


Model Selection and Differences


Boom Shape

Max Boom Length



Straight boom


6 seconds


Straight boom


3 seconds


90 degree, Articulated boom


6 seconds


90 degree, Articulated boom


3 seconds


180 degree, Articulated boom


6 seconds


180 degree, Articulated boom


3 seconds


Functions & Features:

1. Manual release device to operate the barrier when power failure

2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility

4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. RS485 Communication Module is compatible





Working Temperature



220V±10%, 110V±10%, 50/60HZ


3S, 6S

Rated Motor


Remote control distance


Net weight


Relative humidity


Max boom length

6 meters


Why to choose WEJOIN Bi-directional Barrier Gate?

1.Bi-directional Barrier Gate solves the problem of left-installed and right-installed. Due to the same appearance of the two sides of the housing, it can be installed on both side of the gate.

2.Bi-directional Barrier Gate uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor

3.The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.

4.WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
