|Speed:||1S; 1.8S; 3S; 6S||COM Interface:||RS485|
|Motor Material:||Die-casting Aluminum Alloy||Housing Material:||Steel|
|Boom Type:||Straight Arm; Folding Arm; Fence Arm||Voltage:||110v/220v|
parking lot arm gate,
auto barrier gate system

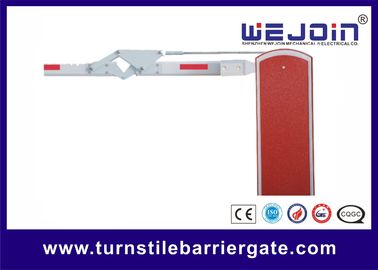

Road vehicle Parking Barrier Gate system access control barrier
**Name: Bi-directional Barrier Gate
**Application : Highway toll
**Speed: 3/6 second
**Feature: Manual release
**Voltage: AC220V, AC110V
Model Selection and Differences
|Model||Boom Shape||Max Boom Length||Speed|
|WJDZ30116||Straight boom||6m||6 seconds|
|WJDZ30113||Straight boom||4.5m||3 seconds|
|WJDZ30126||90 degree, Articulated boom||5m||6 seconds|
|WJDZ30123||90 degree, Articulated boom||3m||3 seconds|
|WJDZ30136||180 degree, Articulated boom||5m||6 seconds|
|WJDZ30133||180 degree, Articulated boom||3m||3 seconds|
Functions & Features:
(1). Manual release device to operate the barrier when power failure
(2). Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
(3). Motor cooling fan to avoid the over-heating possibility
(4). Automatic reversing when the barrier boom meets the obstruction
(5). Auto closing realization through menu setting on the control panel
(6). The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
(7). RS485 Communication Module is compatible
Bi-directional Barrier Gate uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can work with parking system very well, and can be used in door and outdoor.
|Voltage||220V±10%, 110V±10%, 50/60HZ|
|Remote control distance||≥30m|
|Max boom length||6 meters|
Why to choose WEJOIN Bi-directional Barrier Gate?
1. Bi-directional Barrier Gate solves the problem of left-installed and right-installed. Due to the same appearance of the two sides of the housing, it can be installed on both side of the gate.
2. Bi-directional Barrier Gate uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 3000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
