|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Carton package 109*39*42cm|
|Delivery Time:||3~7 working days after payment received|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||5000 units/ month|
|Standard Color:||Red; Yellow||Speed:||3s,6s|
|Max Boom Length:||6m||Rated Power:||120W|
|Protection Degree:||IP44||Rotational Speed:||1400rpm|
automatic car park barriers,
automatic parking barrier

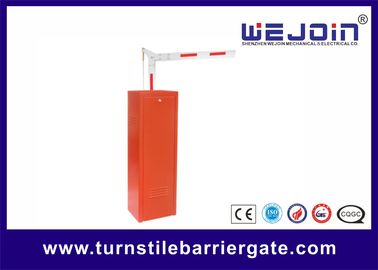

AC220V Parking Barrier Gates With Aluminum Alloy Motor and Red Color Cabinet
|Name||Barrier Gate||Application||Parking System|
|Speed||3/6 second||Max Boom Length||6m|
|Power Supply||AC220V/AC110V||Rated Power||120W|
|Motor Rotational Speed||1400rpm||Protection Degree||IP44|
|Remote Control Distance||≤50m||Boom Dimension||45*100mm|
|Net Weight||39kg||Gross Weight||44kg|
|Certificate||CE/ISO||Boom Type||Octagonal boom|
Model Selection and Differences
|Model||Boom Shape||Max Boom Length||Speed|
|WJDZ70113||Straight boom||4m||3 seconds|
|WJDZ70123||90 degree, Articulated boom||3m||3seconds|
|WJDZ70126||90 degree, Articulated boom||4m||6seconds|
|WJDZ70133||180 degree, Articulated boom||3m||3seconds|
|WJDZ70136||180 degree, Articulated boom||4m||6seconds|
|WJDZ70146||Two-level, fence boom||3.5m||6 seconds|
|WJDZ70156||Three-level, fence boom||3m||6 seconds|
Functions & Features:
1. Boom can rise and fall on left/right side by setting on the same machine
2. Advanced manual release
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
13. Auto warming-up, suitable for cold environment
Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.
Why to choose WEJOIN Bi-directional Barrier Gate?
1. Barrier Gate with aluminum alloy housing is suitable for vehicle flux control of the access. This barrier gate is unique for its good looking, and full molding design for all main parts. Die-cast by aluminum alloy, the barrier gate is anticorrosive. Compact design of machine core adopts big reduction ratio technology, realizes machine core more compact and smart looking. Unique transformed boom can rise and fall on left/right sides under the direction. Just need one standard of balance spring can suit to all length of the booms, no need to change the spring.
2. Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times.
3. Special barrier core makes its installation direction adjustable. Also The barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 3000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
