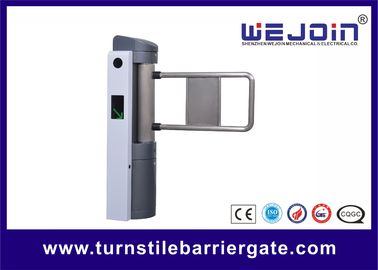

Adjustable Direction Automatic Swing Barrier Gate For Business Buliding

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WITB102
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: Telex Release
Supply Ability: 50PCS/week
Detail Information
Relative Humidity: ≤95% Protection Grade: IP32
Transit Speed: 30~40 Persons/min Motor Type: Brush DC24V
Power Supply: 220V±10%, 110V±10% Motor Material: Steel And Aluminum Alloy
High Light:

speed gate systems

,

waist high turnstiles


Product Description



Adjustable Direction Automatic Swing Barrier Gate For Business Buliding





Quick Detail:





  • Name: Swing Barrier
  • Application: School,hotel,business building
  • Material: Stainless steel
  • Feature: Adjustable access directions
  • Relative hunmidity:≤90%
  • Certificate: CE,ISO
  • Motor type: DC24V,brush





Description:





1. WEJOIN swing barriers have a compact electro-mechanical design with unique drive which and a self-lock mechanism to ensure product durability and silent operation



2. Secondly, WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.



3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.



4. Fourthly, WEJOIN swing barriers have auto closing function when power on



5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.



6. Sixthly, WEJOIN swing barriers input interface available for dry contact and switch signal connection





Specifications





Model

Item

Swing Barrier Mechanism
Mechanism Dimension 108*450mm
Arm Length(Optional) 500-900mm
 Swing Direction double direction or single
Voltage 220V+-15% or 110V+-15%
Driving Motor DC24V,brush
Motro Material Steel and Aluminum Alloy
Input Interface Dry Contact and Switch Signal Connection
 Starting time after power on  3 seconds
Time for Opening or Closing 1 second
Transit Speed 30~40 persons/min
Working Environment Indoor / Outdoor (Shelter)
Working Temperature —25°C~50°C
Relative Humidity ≤90%, with no condensation
