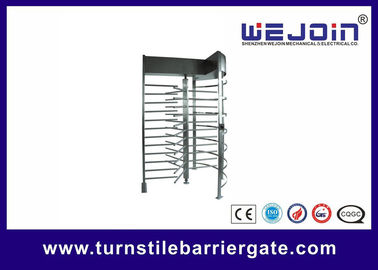

Memory Function Security Entrance Gates Automatic Systems Turnstiles
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
1. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.
2. Memory Function attached in the controller
3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.
4. Compatible with several control devices such as IC, ID, magcard, bar code and so on.
5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.
6. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.
7. With standard input, output interface
8. Counting Function of the controller, LED figure display function (optional)
9. Unlocking is quick and reliable.
10. With smooth operation and little noise
|Material of Housing||201 / 304 Stainless Steel|
|Thickness of Housing||2.00mm|
|Dimension of Housing
|Length of Pole
(out of framework)
|Max Load-bearing of Pole||80kg||30kg||80kg||80kg||30kg||80kg|
|Driving Force of Pole||3kgs|
|Rotating Direction||Single Direction, Double Direction (optional)|
|Power Supply||220V±10%, 110V±10%|
|Light Indicator||Direction indicating|
|Produce Processing||Laser cutting fully controlled by computer|
|Time for Opening||0.2 second|
|Communication Interface||Standard RS485 (distance less than 1200 meters)|
|Input Interface||Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V|
|Transit Speed||30~40 persons/min|
|Working Environment||Indoor / Outdoor (with Shelter)|
|Transmission of Pole||Digital Transmission|
|Relative Humidity||≤90%, no condensation|
