| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | WJDZ501 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiation |
| Packaging Details: | Carton,wooden box |
| Delivery Time: | 1-10 working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000 units/ month |
| Housing Material: | Steel | Color: | Orange |
|---|---|---|---|
| Speed: | 6s | Max Boom Length: | 4 Meters |
| Barrier Type: | LED Screen Barrier Gate | Boom Type: | 3 Fence Arm |
| High Light: | security barrier gate,parking lot barrier,Heavy Duty Fencing Boom Barrier |
||
Quick Detail:
Description:
Specifications
| Model | WJDZ501 |
| Working Temperature | -35℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 60kgs |
| Speed | 6S |
| Max boom length | 4 meters |
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| WJDZ50116 | Straight boom | 6m | 6 seconds |
| WJDZ50113 | Straight boom | 4.5m | 3 seconds |
| WJDZ50111 | Straight boom | 3m | 1 second |
| WJDZ50126 | 90 degree, Articulated boom | 5m | 6 seconds |
| WJDZ50123 | 90 degree, Articulated boom | 3m | 3 seconds |
| WJDZ50136 | 180 degree, Articulated boom | 5m | 6 seconds |
| WJDZ50133 | 180 degree, Articulated boom | 3m | 3 seconds |
| WJDZ50146 | Two-level, fence boom | 4.5m | 6 seconds |

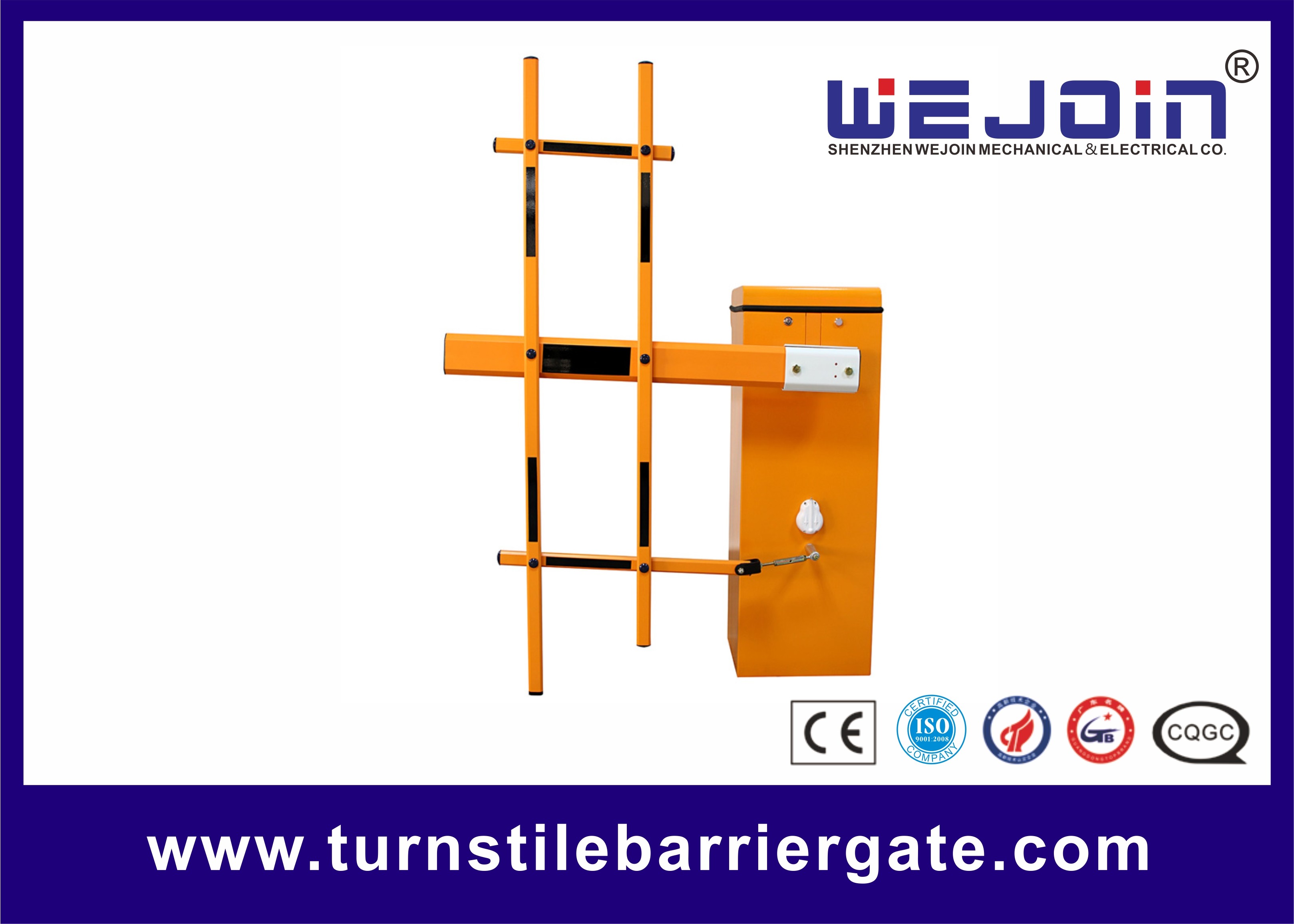

| WJDZ50156 | Three level, fence boom | 4m | 6 seconds |
Functions & Features:
1. LED Screen
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
8. Traffic light interface
9. Manual release device to operate the barrier when power off
10. Automatic moisture control
11. Infrared Photocells (optional)
12. Support the external and internal Vehicle Loop Detector (optional)
Applications:

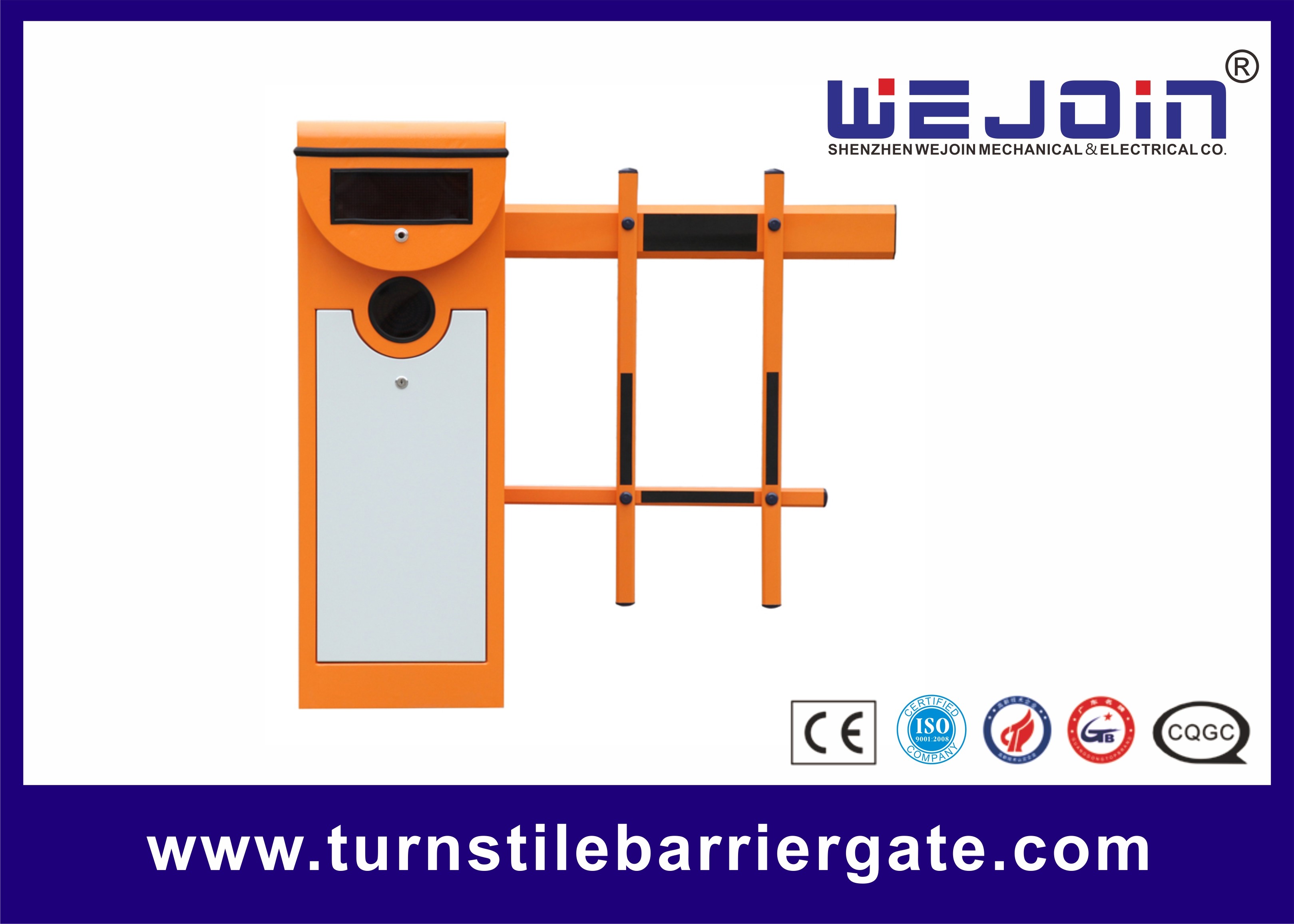

Barrier Gate with LED screen is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.
Why to choose WEJOIN Manual Release Barrier Gate with LED Light Remiding?
1. Barrier Gate with LED screen uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
2. Barrier Gate with LED screen is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.
3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
