Auto Traffic Parking Vehicle Barrier Gate With Mannual Clutch

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ101
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Detail Information
Motor Material: Die-casting Aluminum Alloy Color: Optional
Housing Material: Steel Boom Type: Straight Arm; Folding Arm; Fence Arm
Voltage: 110v/220v COM Interface: RS485
High Light:

security barrier gate

,

traffic barrier gate


Product Description

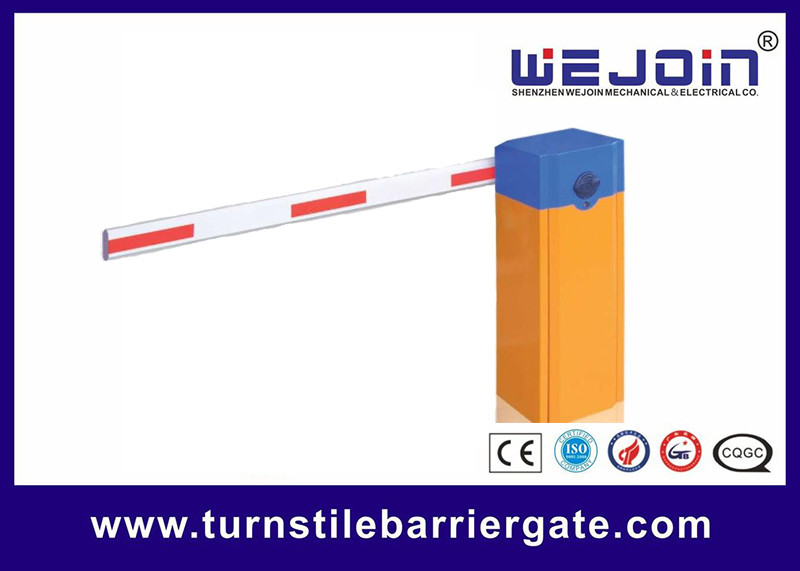

Auto Traffic Parking Vehicle Barrier Gate With Mannual Clutch



Quick Detail:

  1. Name: Vehicle Barrier Gate

  2. Application: Bus station

  3. Speed:1s,3s,6s

  4. Feature: Auto-closing

  5. Rated Power:80W

  6. Certificate: CE, ISO,

  7. Net Weight:60Kg

  8. Voltage:AC220V, AC110V



Description:

Model Selection and Differences

Model

Boom Shape

Max Boom Length

Speed

WJDZ10116

Straight boom

6m

6 seconds

WJDZ10113

Straight boom

4.5m

3 seconds

WJDZ10111

Straight boom

3m

1 second

WJDZ10126

90 degree, Articulated boom

5m

6 seconds

WJDZ10123

90 degree, Articulated boom

3m

3 seconds

WJDZ10136

180 degree, Articulated boom

5m

6 seconds

WJDZ10133

180 degree, Articulated boom

3m

3 seconds

WJDZ10146

Two-level, fence boom

4.5m

6 seconds

WJDZ10156

Three level, fence boom

4m

6 seconds



Functions & Features:

1. RS485 Communication Module is compatible

2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility

4. Reversing on obstacle

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. Manual release device to operate the barrier when power failure



Applications:

Traffic Parking Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirement . It can be used for parking system, factory gate,bus station and so on.



Specifications:

Model

WJDZ101

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Max boom length

8m

Speed

1S,3s,6s

Net weight

60kgs



Why to choose WEJOIN Traffic ParkingVehicle Barrier Gate?

1. Traffic ParkingVehicle Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirements. It can be used for vehicle parking system, factory gate,bus station and so on

2. Traffic Parking Vehicle  Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.

3. Traffic Parking Vehicle  Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate reversing on obstacle. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
