High Speed RFID Vehicle Barrier Gate / Entrance Gate Security Systems

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ601
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 5, 000 set/month
Detail Information
Motor: AC Motor Color: Optional
Speed: 3/6s Max Boom Length: 6m
Boom Type: Straight, Folding Boom; Fence Boom Infrared Photocell: Supportable
High Light:

security barrier gate

,

parking lot barrier


Product Description

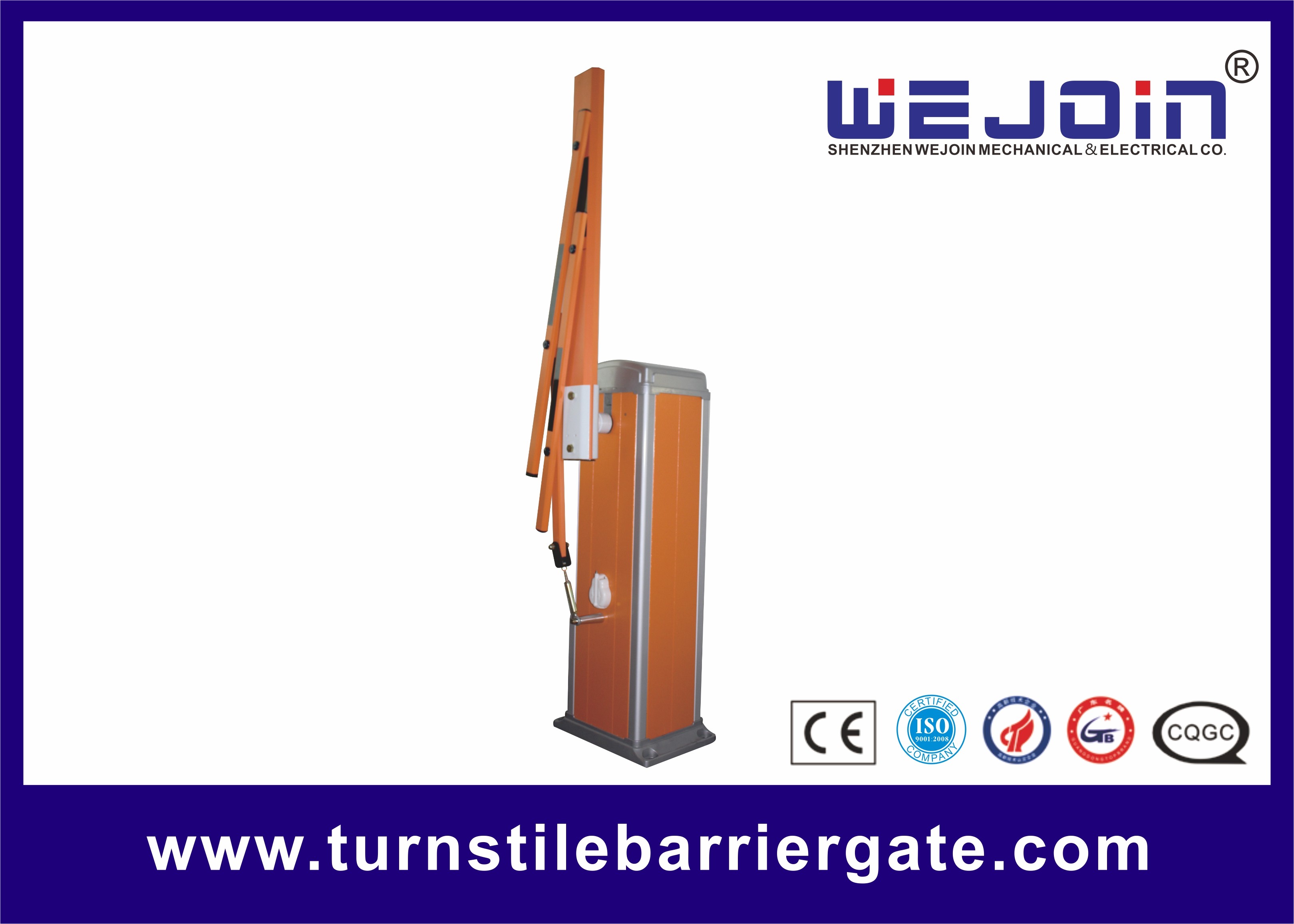

High Speed RFID Vehicle Barrier Gate / Entrance Gate Security Systems





Quick Detail:





  1. Name: Vehicle Barrier Gate
  2. Application: Parking System
  3. Speed: 4/6 second
  4. Protection Grade:IP44
  5. Rated Power:80W
  6. Feature: Auto-closing
  7. Certificate:CE, ISO,
  8. Voltage:AC220V, AC110V





Description:





Model Selection and Differences





Model Boom Shape Max Boom Length Speed
WJDZ60116 Straight boom 4.5m 6 seconds
WJDZ60113 Straight boom 4m 3 seconds
WJDZ60126 90 degree, Articulated boom 4m 6 seconds
WJDZ60123 90 degree, Articulated boom 3m 3 seconds
WJDZ60136 180 degree, Articulated boom 4m 6 seconds
WJDZ60133 180 degree, Articulated boom 3m 3 seconds
WJDZ60146 Two-level, fence boom 3.5m 6 seconds
WJDZ60156 Three-level, fence boom 3m 6 seconds





Functions & Features:





1. Auto closing,Adopts the 3rd generation WEJOIN machine core
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Safety photo electricity limit switch
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
8. RS485 communication module (optional)
9. Advanced manual release
10. Thermal radiates rapidly, no thermal protection
11. Special art and craft makes out the most modernized and fashionable housing





Applications:





Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.





Specifications





Name Barrier Gate Application Parking System
Speed 3/6 second Max Boom Length 6m
Power Supply AC220V/AC110V Rated Power 120W
Motor Rotational Speed 1400rpm Protection Degree IP44
Working Temperature -35℃~75℃ Humidity ≤90%
Remote Control Distance ≤50m Boom Dimension 45*100mm
Net Weight 39kg Gross Weight 44kg
Certificate CE/ISO Boom Type Octagonal boom





Why to choose WEJOIN  Vehicle Barrier Gate?





1. Barrier Gate is suitable for vehicle flux control of the access. This barrier gate is unique for its good looking, and full molding design for all main parts. Die-cast by aluminum alloy, the barrier gate is anticorrosive. Compact design of machine core adopts big reduction ratio technology, come true machine core more compact and smart appearance. Unique transformed boom can rise and fall on left/right sides under the direction. Only need one standard of balance spring can suit to all length of the booms, no need to change the spring.

2. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, at the same time, we offer OEM service

3. Special barrier core makes its installation direction adjustable. Also The barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.





Communication with customers





Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 m.





Housing Outlook
