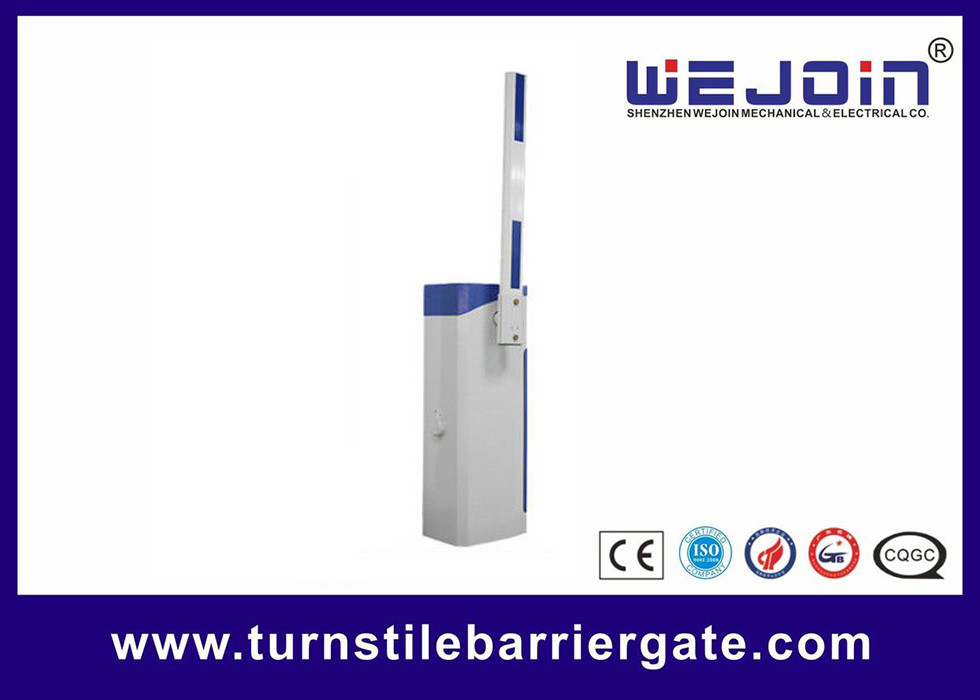

Infrared Photocell Road Vehicle Barrier Arm Gate / Electric Barrier Gate

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ201/202
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 1-20 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 5000 units/weeke
Detail Information
High Light:

security barrier gate


traffic barrier gate

Product Description


Infrared Photocell Road Barrier Arm Gate / Electric Barrier Gate



Quick Detail:


  1. Name: Boom barrier gate
  2. Application: Toll system
  3. Speed:1/3/6s
  4. Certificate: CE, ISO,
  5. Net Weight:60KG
  6. Feature: Infrared photocell
  7. Rated Power:80W
  8. Voltage:AC220V, AC110V






Model Selection and Differences



Model Boom Shape Boom Length Speed
WJDZ20111 Straight boom 3m 1 seconds
WJDZ20213 Straight boom 4.5m 3 seconds
WJDZ20216 Straight boom 6 m 6 second
WJDZ20146 2 fencing 4.5m 6 second
WJDZ20156 3 fencing 4m 6 second



Functions & Features:


1. Manual release device to operate the barrier when power failure

2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility

4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. Optional speeds:1s,3s and 6s, can  be selected on the control board






Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s and 6s. It can be used for toll system, parking system, factory gate, and so on.






Model WJDZ201/202
Working Temperature -35℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 60kg
Speed 1S,3s,6s
Max boom length 8meters



Why to choose WEJOIN Vehicle  Barrier Gate?



1. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.

2. High Speed Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.

3. High Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

4. High Speed Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll.

5. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.



Communication with customers



Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.


Q: The distance of the remote control decreases

A: Please check whether the charge capacity of the remote controller is enough or not


Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.


Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
