| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO, |
| Model Number: | WJDZ801 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 3-7 working days after payent received |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 6000 units/weeke |
| Material: | Steel | Housing Color: | Red, Orange, Yellow, Black, White |
|---|---|---|---|
| Power Voltage: | AC220V/AC110V | Speed: | 1.5s, 3s ,6s |
| Max Boom Length: | 6m | Delivery: | Within 5 Working Days |
| Certificate: | CE, ISO | ||
| High Light: | traffic barrier gate,parking lot barrier |
||

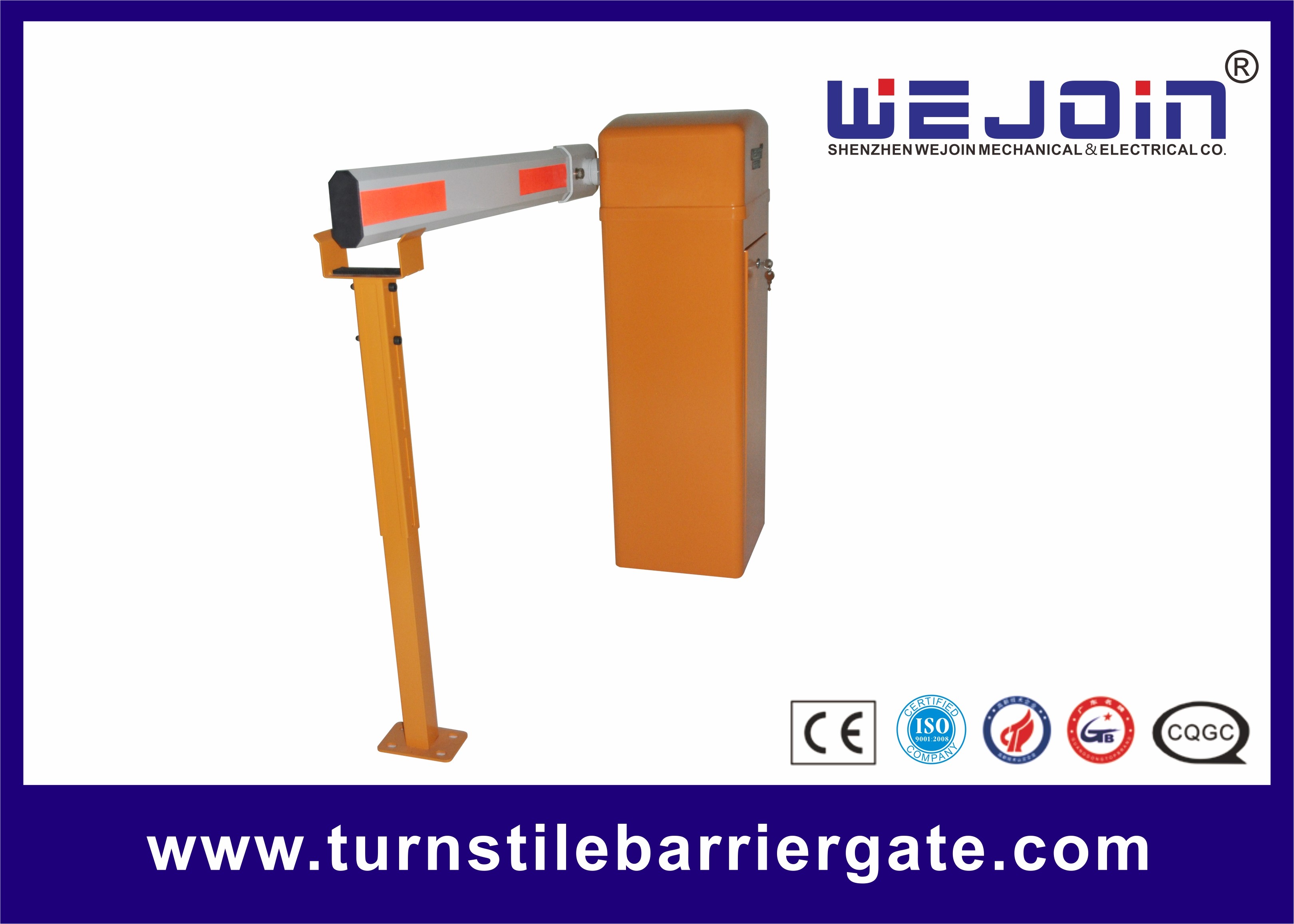

CE Approved AC220V/AC110V Barrier Gate Compatible With Parking System
Quick Detail:
Name: Boom barrier gate
Application: Hospital gate
Speed:1.5/3/6 second
Feature: Crank/rod structure
Net Weight: 50KG
Voltage: AC220V, AC110V
Rated Power:80W
Certificate: CE, ISO,
Description:
Model Selection and Differences
|
Model(WJDZ) Item |
801-11 |
801-13 |
801-16 |
801-23 |
801-26 |
801-33 |
801-36 |
801-46 |
801-56 |
|
Running Time |
1.5s |
3s |
6s |
3s |
6s |
3s |
6s |
6s |
6s |
|
Boom-Type |
Straight |
90°folding |
180°folding |
2fencing |
3fencing |
||||
|
Max Boom Length |
3m |
4.5m |
6m |
3m |
5m |
3m |
5m |
4.5m |
4m |
|
Boom dimension(W*H) |
45*80mm |
45*100mm |
|||||||
|
Boom weight |
3kg |
4.5kg |
6kg |
6.5kg |
8kg |
9kg |
11kg |
7kg |
7kg |
|
Voltage |
220V/110V |
||||||||
|
Motor voltage |
220v |
||||||||
|
Frequency |
50/60HZ |
||||||||
|
Protection Grade |
IP44 |
||||||||
|
Working Temperature |
-35℃～+60℃ |
||||||||
|
Power |
80w |
||||||||
Functions & Features:
1. Open the barrier gate by the motor wheel when power off and automatic locking when power on
2. Balanced boom running with a motor transmission of cranks and shafts
3. Boom with a protective rubber band
4. Auto-delay when closing (adjustable)
5. Infrared photocells interface is available
6. Loop detector interface is available
7. Well-integrated with car parking system equipment, with wire control (push button)
8. Offering dry contact signal for car parking system (COM, NC, NO)
9. Remote control to operate the barrier gate
10. Interface for the traffic light
11. Remote control frequency: 315 MHz, 418MHz, 433MHz
12. Auto-reverse when the boom meets an obstruction
13. Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually, when power on, the motor will work normally.
14. Machine core with strong and double springs, make the machine core works more steadily
Applications:
Barrier Gate uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness and painted so that the barrier can be used indoor and outdoor.
