| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO, |
| Model Number: | WJDZ701 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 3~7 working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000 units/month |
| Spring: | Balance Spring | Speed: | 3s,6s |
|---|---|---|---|
| Max Boom Length: | 6m | Color: | Optional |
| Photocell: | Optional | Certificate: | CE;ISO |
| High Light: | security barrier gate,traffic barrier gate |
||

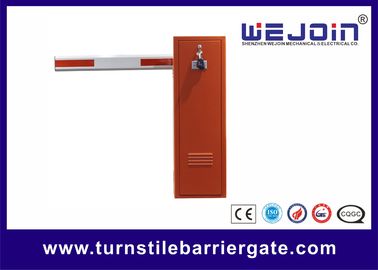

Red Color Cabinet Automatic Car Parking Barriers Gate with Infrared Photocell Options
Quick Detail:
| Name | Barrier Gate | Application | Parking System |
| Speed | 3/6 second | Max Boom Length | 6m |
| Power Supply | AC220V/AC110V | Rated Power | 120W |
| Motor Rotational Speed | 1400rpm | Protection Degree | IP44 |
| Working Temperature | -35℃~75℃ | Humidity | ≤90% |
| Remote Control Distance | ≤50m | Boom Dimension | 45*100mm |
| Net Weight | 39kg | Gross Weight | 44kg |
| Certificate | CE/ISO | Boom Type | Octagonal boom |
Description:
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| WJDZ70114 | Straight boom | 4m | 4seconds |
| WJDZ70116 | Straight boom | 4.5m | 6 seconds |
| WJDZ70126 | 90 degree, Articulated boom | 4m | 6 seconds |
| WJDZ70124 | 90 degree, Articulated boom | 3m | 4seconds |
| WJDZ70134 | 180 degree, Articulated boom | 3m | 4 seconds |
| WJDZ70136 | 180 degree, Articulated boom | 4m | 6seconds |
| WJDZ70146 | Two-level, fence boom | 3.5m | 6 seconds |
| WJDZ70156 | Three-level, fence boom | 3m | 6 seconds |
Functions & Features:
1. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. Safety photo electricity limit switch
9. Thermal radiates rapidly, no thermal protection
10.11. Special art and craft makes out the most modernized and fashionable housing
12. RS485 communication module (optional)
13. Advanced manual release
Applications:
Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.
Why to choose WEJOIN Vehicle barrier Gate?
1. Safety pjhotoelectricity limit switch
2. Special barrier core makes its installation direction adjustable. Also The barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
3. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
4. Barrier Gate uses the third generation motor. It is stable and has long service life performance, running one million times.
5. Barrier Gate is suitable for vehicle flux control of the access. This barrier gate is unique for its good looking, and full molding design for all main parts. Die-cast by aluminum alloy, the barrier gate is anticorrosive.
6. Compact design of machine core adopts big reduction ratio technology, realizes machine core more compact and smart looking. Unique transformed boom can rise and fall on left/right sides under the direction. Just need one standard of balance spring can suit to all length of the booms, no need to change the spring.
