|Rated Power:||80W||Net Weight:||50KG|
|Feature:||Manual Release||Application:||Parking System|
|Speed:||1.5/3/6 Second||Voltage:||AC220V, AC110V|
automatic car park barriers,
parking gate arm,
Hospital Electronic Barrier Gates

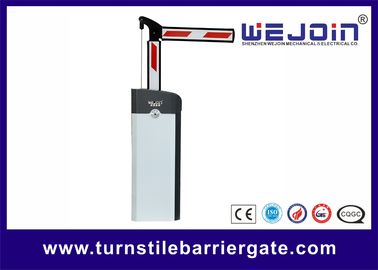

Auto Car Parking System boom barrier gate for Hospital , Government , Railway
Model Selection and Differences
Functions & Features:
[ 1 ]. Boom with protective rubber band
[ 2 ]. Remote control frequency: 315 MHz, 418MHz, 433MHz
[ 3 ]. Remote control to operate the barrier gate
[ 4 ]. Auto-reverse when the boom meets obstruction
[ 5 ]. Infrared photocells interface is available
[ 6. ] Loop detector interface is available
[ 7 ]. Well-integrated with car parking system equipments, with wire control (push button)
[ 8 ]. Interface for traffic light
[ 9. ] Offering dry contact signal for car parking system (COM, NC, NO)
[ 10 ]. Auto-delay when closing (adjustable)
[ 11. ] Balanced boom running with a motor transmission of cranks and shafts
[ 12 ] Open the barrier gate by motor wheel when power off and automatic locking when power on
Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.
|Voltage||220V±10%, 110V±10%, 50/60HZ|
|Remote control distance||≥30m|
|Speed||1.5s, 3S, 6S|
|Max boom length||6 meters|
Why to choose WEJOIN Bi-directional Barrier Gate?
1. Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.
2. Barrier Gate with LED boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
3. Special barrier core makes its installation direction adjustable. Also he barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 3000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
