|Housing Material:||304 / 202 / Cold Rolling Iron Painted||Type:||Automatic Turnstile|
|Access Control System:||Yes||Options:||Single / Double Routeway|
access control barrier,
automatic systems turnstiles

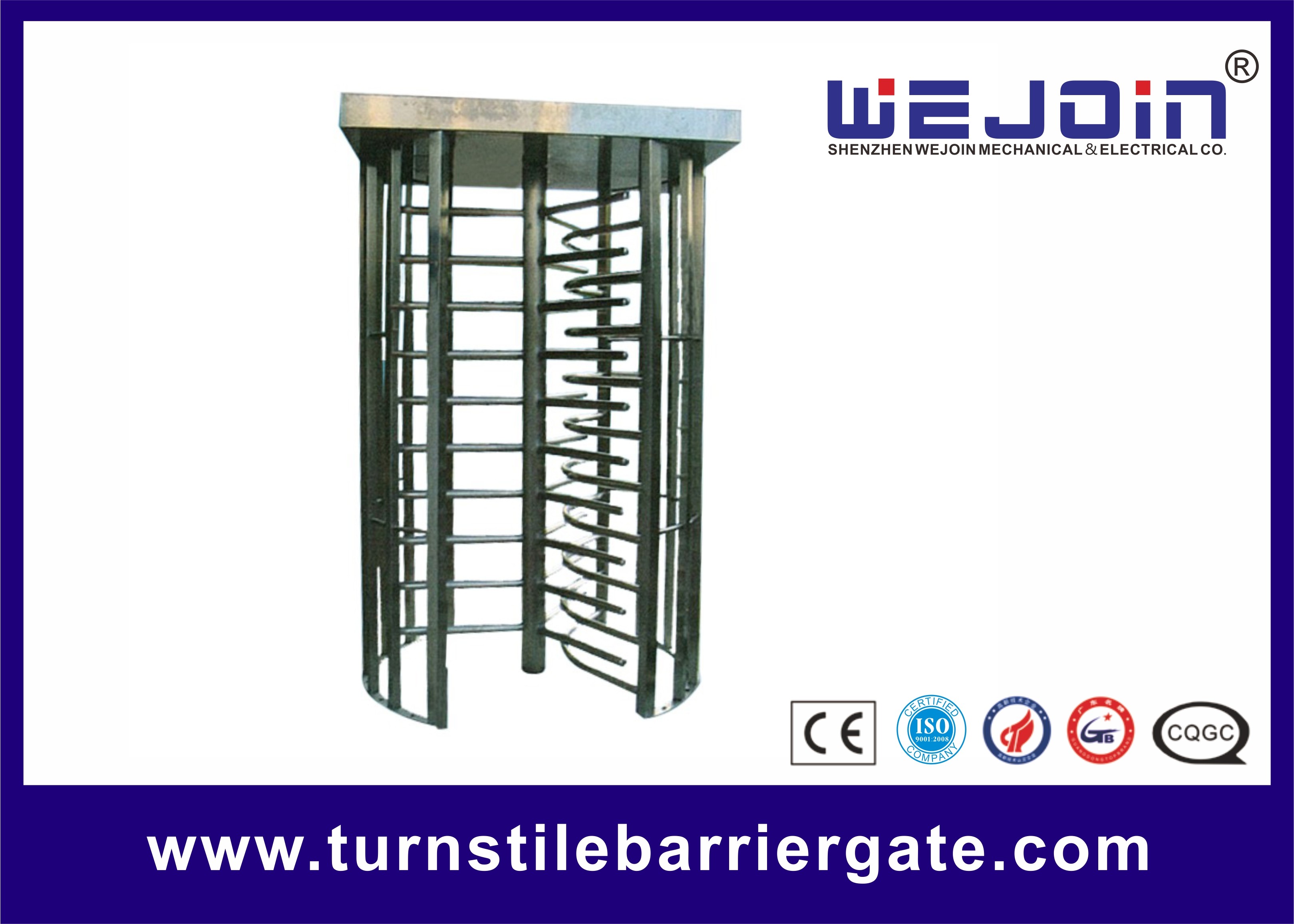

Pedestrian Security Gates Full Height Turnstile With Memory Function
1) The full-high turnstile is designed to provide unsupervised access control for office or building. The impenetrable construction eliminates any unauthorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. the turnstile will unlock and allow the user to pass through the direction requested. The turnstile can also work with push button, fingerprint and face recognition access control system.
2) The full-high turnstile is designed to combine the functions of two single rotor turnstiles into one turnstile. The intermeshing of the left and right-hand rotors allow reduction in overall width from 2.8m to 2.2m with no reduction of passage space. Two rotors allow four possible control points, two entries and two exits. Each rotor can be controlled in one or two directions. The complete stainless
steel construction is suited for interior or exterior application.
1.Running stable without noise and mechanical impact
2. The passing person number of the persons can be set
3.Several ways of working molds for you to choose
4.The standard electrical interface connected with various kinds of reader and writer equipment, RS485 Communication interface, Relay interface, Level interface
5. The function with or without card-reading memory can be set according to your demand.
6. Compatible with several control devices such as IC, ID, magcard, bar code and so on.
7. Unlocking is quick and reliable.
8. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.
9. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.
10. The center rotor will be set free (default) or locked (optional) automatically when the power is off.
11. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.
12. Counting Function of the controller, LED figure display function (optional)
13. Memory Function attached in the controller
|Material of Housing||201 / 304 Stainless Steel|
|Thickness of Housing||2.00mm|
|Dimension of Housing||1630×1500×2300||1400×||2800×||2150×|
|Length of Pole||610mm||470mm||610mm||470mm|
|(out of framework)|
|Max Load-bearing of Pole||80kg||30kg||80kg||30kg|
|Driving Force of Pole||3kg|
|Produce Processing||Laser cutting fully controlled by computer|
|Power Supply||220V±10%, 110V±10%|
|Transmission of Pole||Digital Transmission|
|Light Indicator||Direction indicating|
|Rotating Direction||Single Direction, Double Direction (optional)|
|Time for Opening||0.2 second|
|Communication Interface||Standard RS485 (distance less than 1200 meters)|
|Input Interface||Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V|
|Transit Speed||30~40 persons/min|
|Working Environment||Indoor / Outdoor (Shelter)|
|Relative Humidity||≤90%, no condensation|
