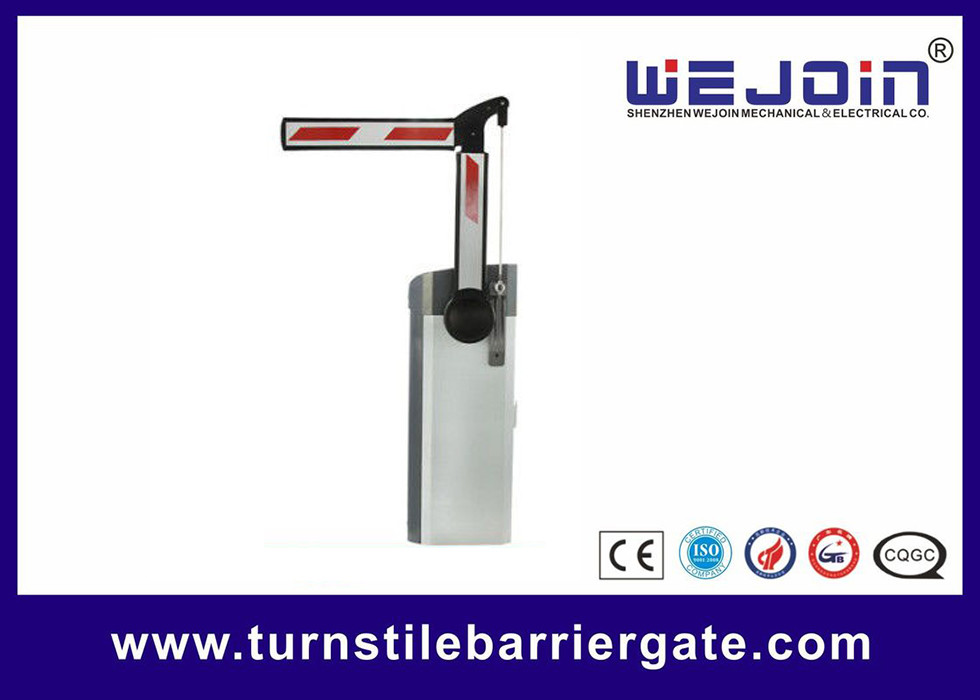

Balanced Boom Intelligent Barrier Toll Gate

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ820
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
High Light:

parking barrier gates

,

car park barrier systems


Product Description



Balanced Boom Intelligent barrier Toll Gate AC 220V , AC 110V





Quick Detail





Name: Bi-directional Barrier Gate

Application : Parking System

Speed:3/6 second

Feature: Manual release

Rated Power: 120W

Certificate:CE, ISO,

Net Weight:50KG

Voltage:AC220V, AC110V

Voltage:AC220V, AC110V



Model Selection and Differences



Model(WJDZ)



Item

820-13 820-16 820-26 820-36 820-46 820-56
Opening Time 3S 6S
Boom Type Straight

Articulated

90 degree

Articulated

180 degree

Fence

Two-level

Fence

Three level

Boom Length 3m 6m 5m 5m 5m 5m
Voltage 220V/110V
Power 80W
Protection Grade IP44
Working Temperature -35 - +60
Remote control distance 30m≤D≤100m





Functions & Features:



1. Open the barrier gate by motor wheel when power off and automatic locking when power on

2. Balanced boom running with a motor transmission of cranks and shafts

3. Remote control to operate the barrier gate

4. Auto-reverse when the boom meets obstruction

5. Infrared photocells interface is available

6. Loop detector interface is available

7. Well-integrated with car parking system equipments, with wire control (push button)

8. Interface for traffic light

9. Offering dry contact signal for car parking system (COM, NC, NO)

10. Auto-delay when closing (adjustable)

11. Remote control frequency: 315 MHz, 418MHz, 433MHz

12. Boom with protective rubber band





Applications:



Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.





Specifications



Model WJDZ820
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 50kgs
Speed 1.5S, 3S, 6S
Max boom length 6 meters





Why to choose WEJOIN Barrier Gate with rubber on boom?



1. Barrier Gate with rubber on boom adopts the latest mold casting design, without clutch device. Its machine core adopts connecting rod structure mainly comprised with worm wheel, worm and crank arm. The barrier gate runs stably, and is conveniently maintained.

2. Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles.

4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.





Communication with customers



Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
