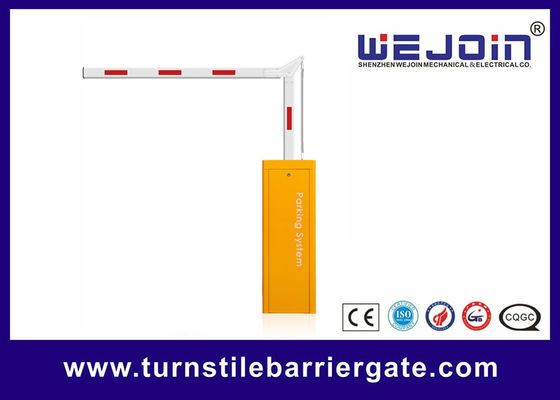

Boom Barrier Gate for Parking Systems With Loop Detector Options and Yellow Color Cabinet

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ701
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton
Delivery Time: 3~7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 units/month
Detail Information
Color: Yellow Speed: 3s,6s
Max Boom Length: 6m Power Supply: AC220V;AC110V
Boom Dimension: 45*100mm Carton Dimension: 109*39*42cm
High Light:

automatic barrier gate system


electric barrier gate

Product Description


Boom Barrier Gate for Parking Systems With Loop Detector Options and Yellow Color Cabinet


Quick Detail:



Name: Bi-directional Barrier Gate

Certificate:CE, ISO,

Speed:3/6 second

Feature: Manual release

Rated Power:120W

Net Weight:39KG

Application : Parking System

Voltage:AC220V, AC110V






Model Selection and Differences



Model Boom Shape Max Boom Length Speed
WJDZ70116 Straight boom 4.5m 6 seconds
WJDZ70113 Straight boom 4m 3 seconds
WJDZ70126 90 degree, Articulated boom 4m 6 seconds
WJDZ70123 90 degree, Articulated boom 3m 3 seconds
WJDZ70136 180 degree, Articulated boom 4m 6 seconds
WJDZ70133 180 degree, Articulated boom 3m 3 seconds
WJDZ70146 Two-level, fence boom 3.5m 6 seconds
WJDZ70156 Three-level, fence boom 3m 6 seconds



Functions & Features:



1. Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally.

2. Machine core with strong and double springs, makes the machine core work more steadily.

3. Die-casting aluminum alloy motor, precise and good at thermal radiation.

4. Crank and rod structure makes the boom run placidly.

5. Double safety limit switches (photo electricity limit switch and motor memory sensor).

6. Reversing on obstacle.

7. Auto-closing.

8. Support the infrared photocell for anti-bumping function (optional)

9. Support external and internal vehicle loop detector (optional)

10. Traffic light interface (AC220V, can support lamp with 40W)

11. Wire control (switch signal) /Remote control (418MHZ)

12. RS485 communication module( optional)

13. Open, close control interface for parking system

14. Provide limit state signal for parking system







Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.






Model WJDZ701
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 120W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 39kgs
Speed 3S, 6S
Max boom length 6 meters





Communication with customers



Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.


Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.


Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.



Boom Barrier Gate for Parking Systems With Loop Detector Options and Yellow Color Cabinet 0
