| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | WJST303 |
| Minimum Order Quantity: | 1PCS |
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50PCS/week |
| Width Of Passage: | 600~1100mm (a Pair) | Power Supply: | AC220V±10%, AC110V±10% |
|---|---|---|---|
| Material Of Cabinet: | 304 Stainless Steel | Working Voltage Of Motor: | DC24V |
| Communication: | RS232 | Working Environment: | Indoor / Outdoor ( Shelter) |
| High Light: | Pedestrian Entrance swing barrier turnstile,RS232 swing barrier turnstile,RS232 Pedestrian Entrance Swing Barrier |
||

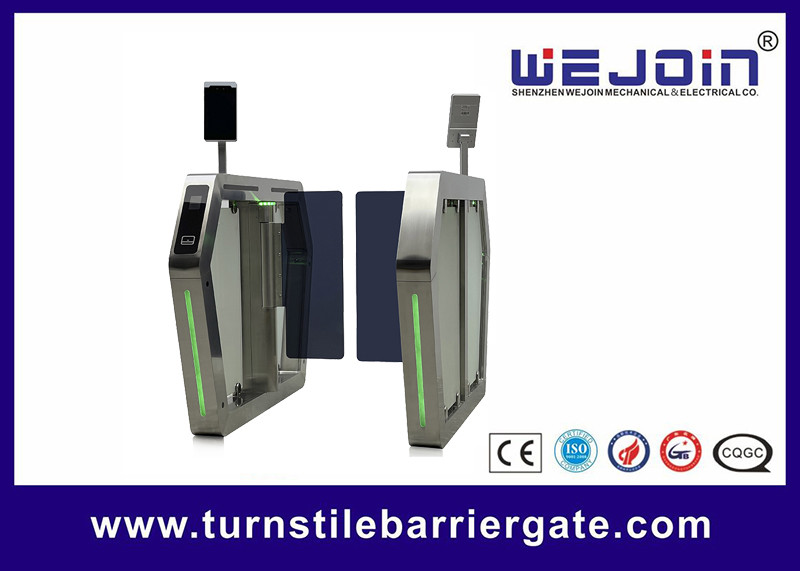

Security pedestrian entrance swing barrier turnstile access control gate
Swing Barrier Brief Introduction
The intelligent flap barrier is a brand-new product of WEJOIN Company. The flap barrier is a hi-tech product for pedestrian access control. WEJOIN Swing barrier has features of precise craftsmanship, comprehensive functions, and high technology. It has applications in high-class communities, intelligent buildings, hotels, subway stations, and other high-level venues.
Speed Gate Advanced Features and Functions
1. Adopting a self-developed tubular two-stage planetary gear reducer structure, driven by DC permanent magnet motor, it has special dynamic characteristics such as compact structure, large torque, low noise, and wear resistance.
2. Adopting a self-developed servo control system, for precise control, more flexible running, less mechanical impact, and longer service life.
3. Using frequency conversion technology, which realizes running speed adjustment, to meet different access requirements and have a better experience.
4. Fast and stable operation, the fastest opening speed can reach 0.2 seconds.
Swing Barrier Gate Technical Data
|
Material of Housing |
304Stainless Steel |
|
Material of Flap Door |
Organic Glass, Resin, or PVC |
|
Thickness of Housing |
1.50mm |
|
Width of passage |
600~1100mm (a pair) |
|
Power supply |
220V±10% , 110V±10% |
|
Frequency |
50/60 Hz |
|
Working voltage of motor |
DC24V |
|
Normal Life-span |
10 million times |
