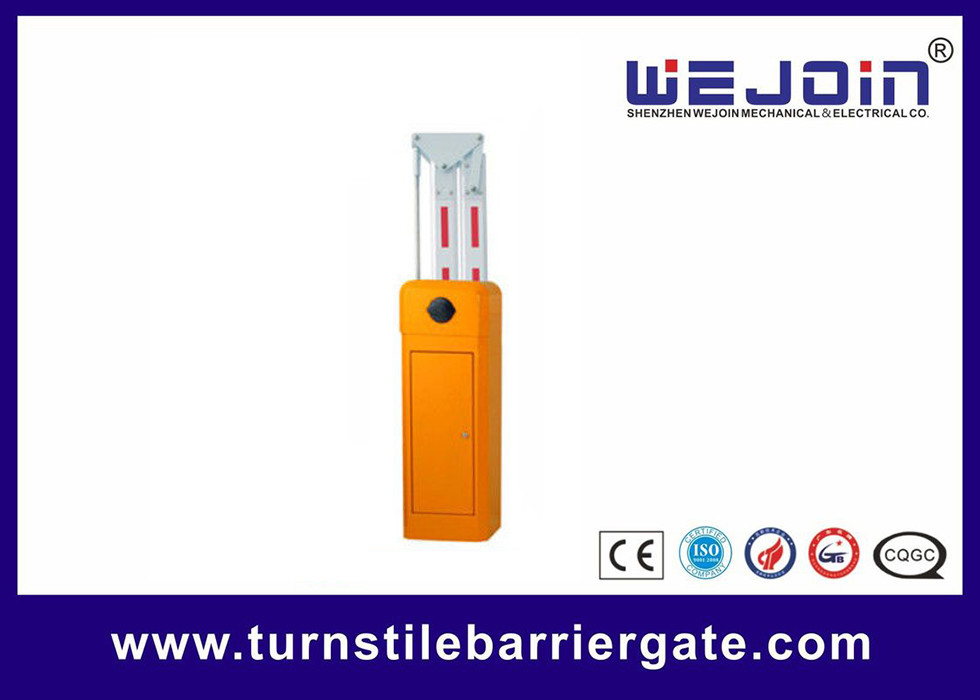

Crank Car Parking Lot Boom Barrier Gate Arm Anti - collision AC 220V / 110V
Model Selection and Differences
|Model||Boom Shape||Max Boom Length||Speed|
|WJDZ10216||Straight boom||6m||6 seconds|
|WJDZ10213||Straight boom||4.5m||3 seconds|
|WJDZ10211||Straight boom||3m||1 second|
|WJDZ10226||90 degree, Articulated boom||5m||6 seconds|
|WJDZ10223||90 degree, Articulated boom||3m||3 seconds|
|WJDZ10236||180 degree, Articulated boom||5m||6 seconds|
|WJDZ10233||180 degree, Articulated boom||3m||3 seconds|
|WJDZ10246||Two-level, fence boom||4.5m||6 seconds|
|WJDZ10256||Three level, fence boom||4m||6 seconds|
Functions & Features:
1. RS485 Communication Module is compatible
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Reversing on obstacle
5. Auto closing realization through menu setting on the control panel
6.Manual release device to operate the barrier when power failure
7.The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
Traffic Parking Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirement . It can be used for underground parking system, factory gate,bus station and so on.
|Voltage||220V±10%, 110V±10%, 50/60HZ|
|Remote control distance||≥30m|
|Max boom length||8m|
Why to choose WEJOIN Crank arm anti-collision Automatic boom barrier gate?
1. Crank arm anti-collision Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirements. It can be used for vehicle parking system, factory gate,bus station and so on
2.Crank arm anti-collision Boom Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.
3. Crank arm anti-collision Boom Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate reversing on obstacle. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
5. Both compression spring and extension spring are suitable for the motor. the compression spring can aviod accidents caused by broken springs due to great force
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 3000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
