pedestrian Swing Barrier gate

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WITB101
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: Telex Release
Supply Ability: 50PCS/week
Detail Information
High Light:

waist high turnstiles


pedestrian gate access control

Product Description

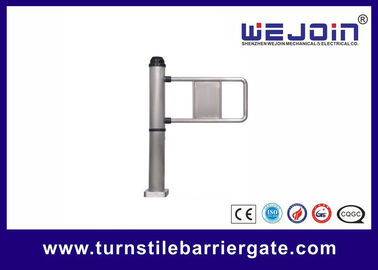

Pole type Single pedestrian Swing Barrier gate With Emergency Interface



Quick Detail:



  • Name: Swing Barrier
  • Application: School,hotel,library
  • Material: Stainless steel
  • Feature: Pole-type
  • Voltage: 110V/220V
  • Certificate: CE,ISO
  • Motor type: DC24V,brush






1. WEJOIN swing barriers have a compact electro-mechanical design with unique drive which ensure product durability and silent operation and self-lock mechanism can also well protect the access control security.


2. Secondly, WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.


3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.


4. Fourthly, WEJOIN swing barriers have auto delay closing function, Alarm for unauthorized access and no access against passenger flow.


5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.


6. Sixthly, WEJOIN swing barriers input interface available for dry contact and switch signal connection








Swing Barrier Mechanism
Mechanism Dimension 108*450mm
Arm Length(Optional) 500-900mm
 Swing Direction Single or Bidirectional Operation are Available
Voltage 220V+-15% or 110V+-15%
Driving Motor 24V Brush DC Motor
Motro Material Steel and Aluminum Alloy
Input Interface Dry Contact and Switch Signal Connection
 Starting time after power on  3 seconds
Time for Opening or Closing 1 second
Transit Speed 30~40 persons/min
Working Environment Indoor / Outdoor (Shelter)
Working Temperature —25°C~50°C
Relative Humidity ≤90%, with no condensation
