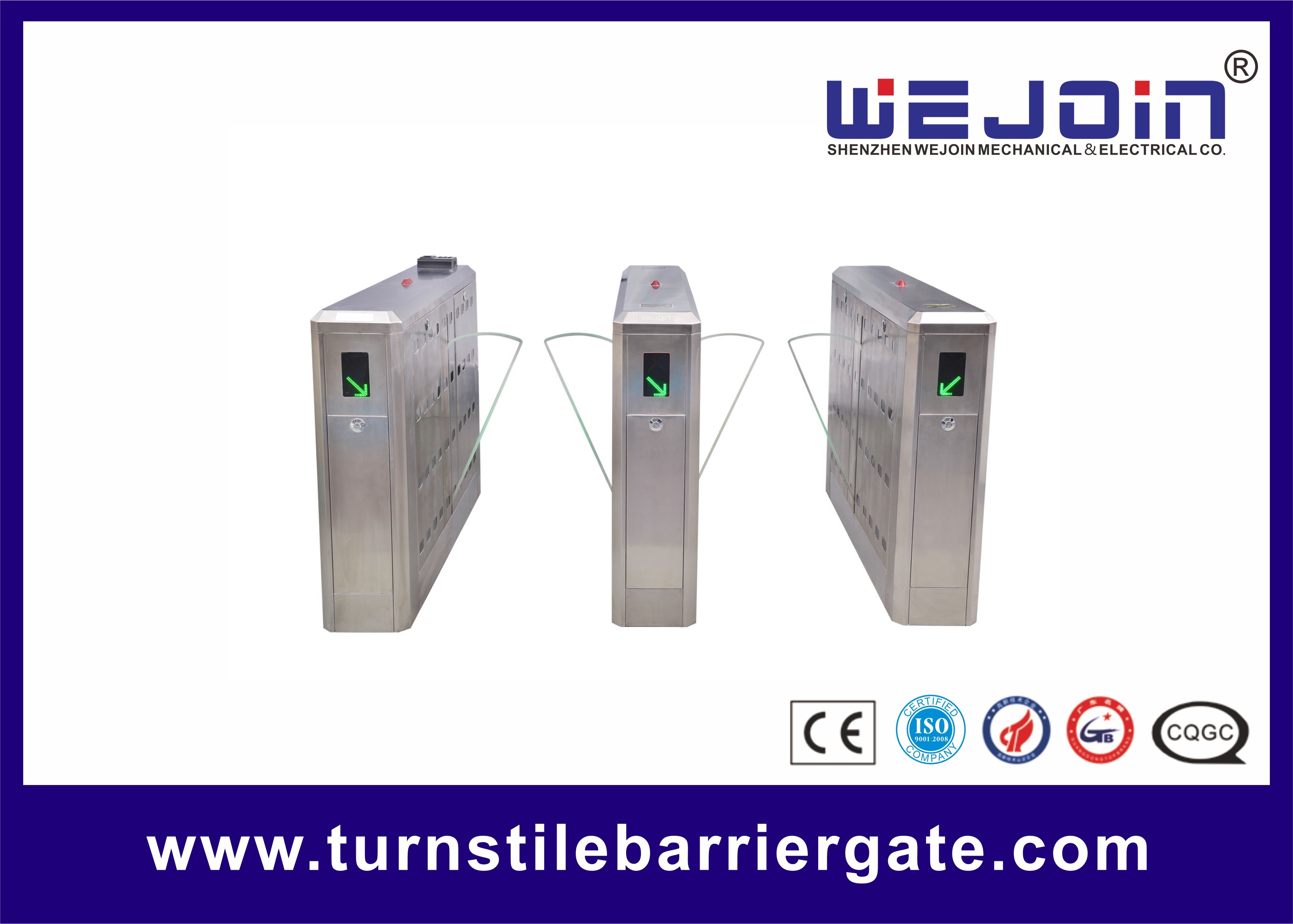

Intelligent Access Control Flap Turnstile Barrier Gate Stainless Steel 110V / 220V

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJTY201
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 days
Payment Terms: T/T
Supply Ability: 50PCS/week
Detail Information
Speed: 0.5S Gate Type: Transparent
Install Photocell: Yes Customized: Optional
Closing/opening Time: Adjustable Safaty Pass: Yes
High Light:

turnstile security systems


speed gate systems

Product Description


Intelligent  Access Control Flap Turnstile Barrier Gate Stainless Steel 110V /  220V





1. Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control.

2. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.

3. Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier.

4. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.

5. Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.





High class communities, intelligent buildings, hotels, subway stations and other high level venues.


Functions and Features:


1.Zero position self-checking function, which offers users a convenient way
to use and maintain it;
2.The warning function of indicating illegal intruders;
3.The function of anti-impulse: the expansion baffle (swing-arm) is
self-locked before receiving the signal of opening the gate;
4.Infrared and mechanical anti-nipping function: when the expansion baffle
(swing-arm) is blocked with something in the course of turning back, with
little force, the motor will stop working in the regular time, and send out
the alarm signal.

5.The function of automatic reposition: if one doesnt pass in the regular time
set by the system after the card being read validly, the system will
automatically cancel his/her passing right.
6.The standard outward electric interface can be connected with many kinds
of card readers and realize remote control and management through
running the computer.
7. The whole system is running steadily with low noise.



1) Electrical source voltage: AC220±10% V50HZ
2) Driving motor: direct current motor 24V/100W
3) Temperature of the working environment: -15OC - 60 OC
4) relative humidity: ≤90%, not dewing
5) input interface: 12V electrical level signal or 12V pulse signal with the
pulse width100ms driving electric current10mA
6) communication interface: RS485 electric standard
7) communication distance
: ≤1200 meters

8) gangway width: wing barrier: 600mm; the length of a single bar of
swing gate barrier: 600-900mm

9) Passing speed: 30 people/min ( always open mode), 20 people/min
(always close mode)
10) Time of gate opening and closing: wing barrier :1s, swing gate barrier:
