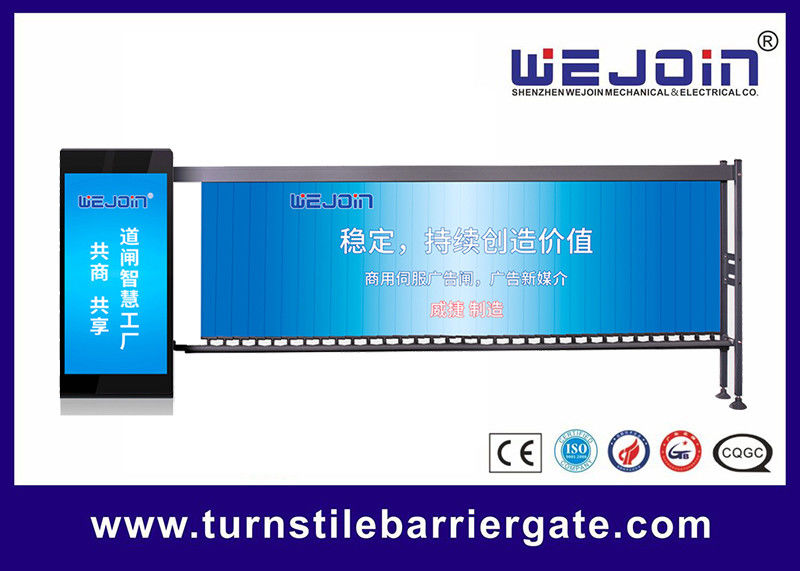

Automatic parking lot remote control advertising boom barrier gate with LED light
Advertising Boom Barrier Gate Introduction
WEJOIN advertising barrier gate, machine core fixed with a tilted structure, with better strength and easier installation. Parts are precision machined by micron-level robotic units, and advanced assembly lines are used, with high assembly precision, good consistency, and long product life. Power on to detect the position of the boom, accurate and reliable.
Advertising Barrier Functions and Features
1. Self-developed DC24V brushless motor with stable and reliable worm gear, planetary reduction transmission structure, large torque, and wear resistance.
2. Self-developed servo control system, precise control, more flexible running, less mechanical impact, and longer service life.
3. Good braking performance, low power consumption, high efficiency, smooth operation, low noise, and a better experience.
4. The boom handle is positioned horizontally, which is convenient for disassembly and assembly (you can install the boom firstly and then run the barrier gate).
Barrier Gate Technical Data
| No. | Item | Data |
| 1 | Working Temperature | -35℃～+80℃ |
| 2 | Input Voltage of Power Supply | AC100V~120V, or AC200~240V |
| 3 | Input Voltage of Controller | DC24V ±10% |
| 4 | Working Voltage of Motor | DC24V |
| 5 | Motor Power | 200W MAX |
| 6 | Relative Humidity | 30%~80% (no condensation) |
| 7 | Type of Remote Control | 433MHZ learning code |
| 8 | Distance of Remote Control | L≥30 meters |
| 9 | Opening & Closing Speed | 4~8 seconds adjustable |
| 10 | Boom Length | 4.1 meters or 3.5 meters for choosing |
| 11 | MTBF | 3,000,000 times |
