| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | SCB02 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Boom Type: | Straight Round Boom | Housing Color: | Gold |
|---|---|---|---|
| Application: | Parking Lot | Speed: | 0.3 Seconds MAX |
| MTBF: | 8,000,000 Times | Arm Material: | Aluminum Alloy |
| High Light: | No Spring Mechanism Parking Barrier Gate,3D Car Park Barriers And Turnstiles,speed driveway swing barrier gate |
||

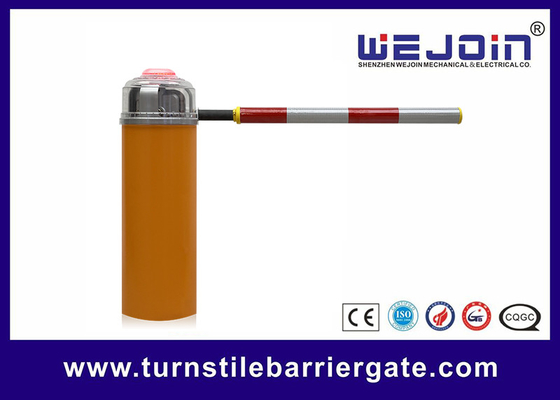

DC Variable-Frequency 3D Barrier Gate SCB02 No-spring Mechanism
Boom Barrier Brief Introduction
1. Adopting the three-dimensional double-drive no-spring mechanism independently developed.
2. Dual power motors, use two-stage planetary gear and two-stage gear drive combination respectively, rotate up and down and horizontally, and superimpose to form a three-dimensional surface running track.
3. Adopting DC permanent magnet synchronous motor and variable-frequency control, effectively solve the problems of limited speed, life and spring.
4. Breaking the normal operation mode of the barrier gate, the starting point adopts the same-direction driving operation mode with the vehicle passing, to realize the ultra-high-speed and ultra-intensive operation.
5. The boom will be reset after hit and removed, which effectively protects the boom and the mechanism, alarm against abnormal lifting boom.
3D Barrier Gate Technical Data
| Working temperature (motor) | -35℃~ + 70℃ |
| Power supply input voltage | AC110±10%, AC220V±10% |
| Controller input voltage | DC24V±10%, 10A |
| Motor power | up and down power 180W; horizontal power 60W |
| Relative Humidity | 30%~80%, No condensation |
| Distance of remote control | L≥30M |
| Running Speed | 0.3 seconds MAX |
| MTBF | 8,000,000 times |
Maintenance
1. Keep the barrier gate clean
2. Check the joints every month in case of any loose parts.
3. Check the balance status of spring after the barrier gate running 1million times; change new springs after running 3 million times, to avoid spring breaking due to excessive fatigue.
4. Check the easily worn-out parts every half year and renew them.
5. Remote control distance will be shortened or not work in cases like big object screening, battery exhausting, extreme weather.
