|Operating Time:||1.8~6s||Boom Type:||Straight Folding Fencing|
|Housing Material:||304 Stainless Steel||Color:||Gold|
|Application:||Parking Lot||Warranty:||1 Year|
straight boom folding parking gate,
SGS folding parking gate,
DC24V car park barrier gate
DC24V battery power supply auto-opening when power off high stability barrier gate
Description (Boom Length=L, Meters=M, Seconds=S)

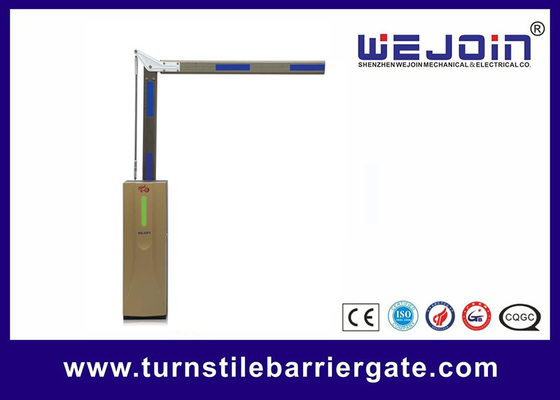

Barrier gate with folding boom
L≤3M (1.5+1.5M), up speed 2S.
L≤4M (2+2M), up speed 4S.
L≤5M (2.5+2.5M), up speed 4S.
Boom Barrier Basic Features:
1. No spring design, eliminating the need for mechanical leveling, maintenance-free.
2. The boom will not fall off when power off, high safety.
3. Minimal operation, the direction can be exchanged in 30 seconds.
4. Bluetooth control, one-key remote service.
Common Malfunctions and Solutions
Malfunction Phenomenon: The controller displays IDLE
A: Possible Causes: The motor sensor plug is not plugged in.
Solution: Insert the motor sensor plug well.
B: Possible Causes: Motor sensor failure.
Solution: Replace the motor.
Non-spring barrier gate folding boom installation
Step 1. Fix the boom fixing plate on boom with 2pcs of M12*70mm hexagon screw.
Step 2. Hold the fixing plate by hand, then lift up the boom vertically and install it on the boom holder. And then install the flat washer, spring washer, and M12 nut on the screw in turn, and fix the screw with a wrench.
Step 3. Use the support board components to replace the triangular block, then fix the rod and connecting bearing on the support board components with screw.
Step 4. Loosen the bolsters with right-hand and left-hand screw, rotate the stainless steel pulling rod then adjust the horizontal and vertical position of the boom; after adjusting well, lock the bolsters with right-hand and left-hand screw.
