| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | CB01VF |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Boom Type: | Straight Boom | Voltage: | AC 110V Or 220V |
|---|---|---|---|
| Speed: | 1-4s/2-6s Speed Adjustable | Usage: | Parking Lots/toll Gate/highway |
| Warranty: | 1 Year | Protection Class: | IP54 |
| High Light: | Parking Barrier Gate Straight boom,8m Car Park Boom Gates,2S Car Park Boom Gates |
||

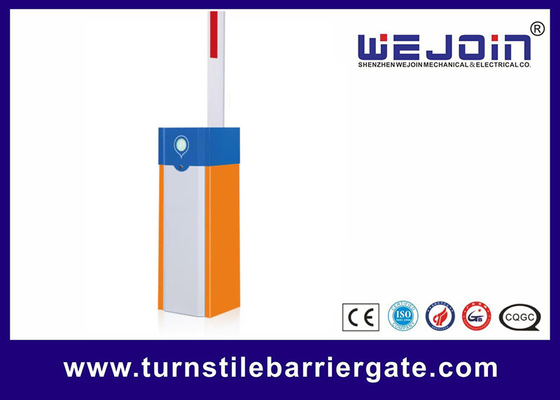

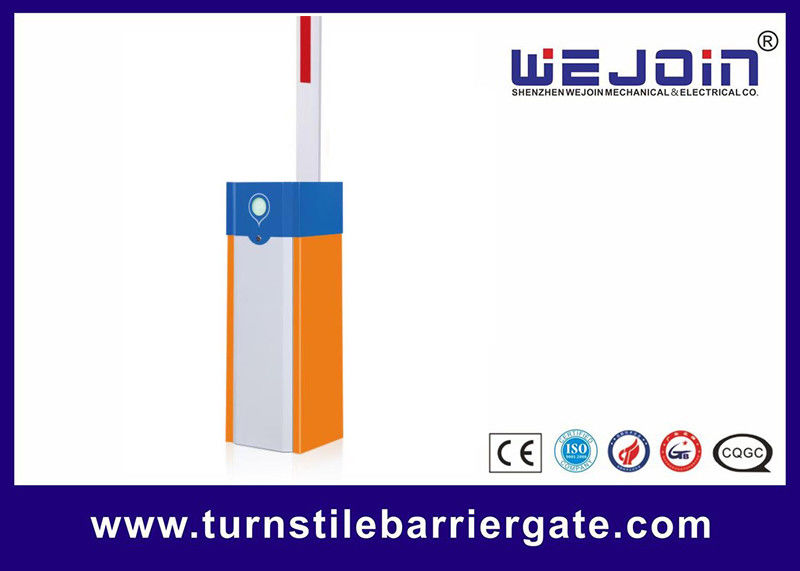

100% Duty Cycle 2~6 S Running Speed Straight Arm Max 8m Car Park Boom Gates
Vehicle Barrier Gate Functions and Features:
1. DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times, spring life 500,000 times.
2. Auto reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.
3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. Optional Bluetooth module, convenient debugging of barriers through small programs.
6. Large LCD screen display, English visual menu, easy function selection and debugging.
7. Left-installation and right-installation can be changed.
Barrier Gate Technical Data
|
Model |
CB01VF-H |
|
Running Speed |
1~4 S |
|
Boom-Type |
Straight |
|
Max Boom Length |
4.5M |
|
Input Voltage |
AC220V±10%, AC110V±10% |
|
Frequency |
50/60HZ |
|
Motor Voltage |
DC24V |
|
Enclosure Rating |
IP54 |
|
Working Temperature |
-35°C ~ +70°C |
|
MTBF |
6,000,000 times |
|
Traffic Flow Application |
24 hours uninterrupted operation |
|
Max Motor Power |
240W |
|
Max Motor Speed |
60r/min |
|
Max Torque |
390N.m |
Parking Barrier Operating Environment Requirements
Please transport, use and store the device within the allowable humidity and temperature range.
Please do not let any liquid flow into the device.
Please install the device in a well-ventilated place, and do not block the vents of the device.
Please do not press hard, vibrate violently or soak the equipment.
Please use the factory packaging or materials of the same quality when shipping the equipment.
It is recommended to ground via the grounding hole on the device to improve its reliability.
