LCD Screen Display Control Board Parking Barrier Gate RS485 Communication Barrier Boom Gate

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: CB01VF
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Boom Type: Straight Boom Voltage: AC 110V Or 220V
Speed: 1-4s/2-6s Speed Adjustable Usage: Parking Lots/toll Gate/highway
Warranty: 1 Year Protection Class: IP54
High Light:

LCD Screen Parking Barrier Gate


Parking Barrier Gate IP54


RS485 barrier boom gate

Product Description

Large LCD screen display control board RS485 communication barrier boom gate


Vehicle Barrier Gate Technical Data

1. Working temperature (motor): -35℃~ + 70℃

2. Power supply input voltage: AC100~265V

3. Controller input voltage: DC24V±10%, 10A

4. Motor power: 180W MAX

5. Relative Humidity: 30%~80%, No condensation

6. Distance of remote control: L≥30M


Parking Barrier Maintenance
1. Once a month to check whether the fasteners are loose, fall off and timely tightening.
2. Every six months, please ask professionals to check the wear and tear of the easy-to-wear parts and replace the worn parts in time.
3. The remote control distance is too short, please check whether the receiver is shielded by metal objects, or the battery power is insufficient. Remote control distance is affected by the weather, in rain, fog, wind, snow and other adverse weather conditions, or due to the use of remote control equipment, the region has the same frequency interference, remote control distance has been shortened, is a normal phenomenon.


Barrier Gate Technical Data

Model CB01VF-I
Running Speed (Seconds: S) 2~6 S 6 S 6 S 6 S 6 S
Boom Type Straight 90Folding 180Folding 2 Fence 3 Fence
Max Boom Length (Meters: M) 4M~8M 5M 4M 4.5M 4M
Cabinet Dimension (W*D*H) 329*286*935MM, 335*315*967.2MM
Enclosure Rating IP54
MTBF 6,000,000 times
Duty Cycle 100%
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Speed 30r/min
Max Torque 300N.m


WJCB01VF-I Machine Core

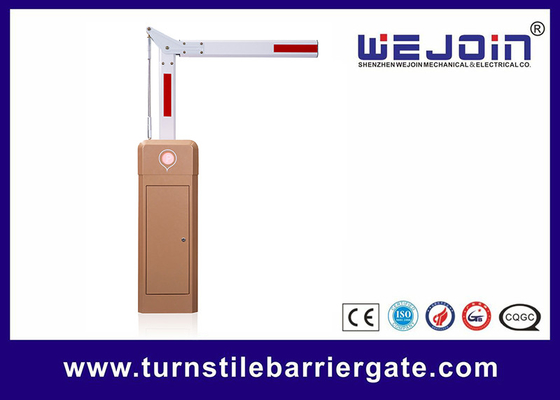

LCD Screen Display Control Board Parking Barrier Gate RS485 Communication Barrier Boom Gate 0
