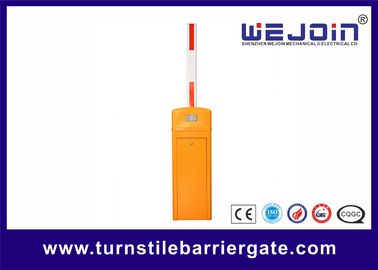

Automatic Access Control Barrier Gates Parking Safety System Flap Barrier 120W
Main Features
1. Open the gate by the motor wheel when power off and automatic locking when power on
2. Balance boom running with a motor transmission of cranks and shafts
3. Remote control to operate the barrier gate
4. Auto reverses when the boom meets obstacles
5. Infrared photocells interface is available
6. Loop detector interface is available
7. Well integrated with car parking system equipment, with wire control (push button)
8. Interface for the traffic light
9. Installation on both sides (left or light)
10. Auto-delay when closing (adjustable)
Working environment and data
1. Mechanism temperature -25℃+85℃
2. Control board temperature -20+85℃
3. Power supply 220V±10% 50/60 Hz
110V±10% 50/60 Hz
4.Rated power 120W
5.Relative humidity ≤90%
6.Remote control ≥30M
7.Net weigh 60 Kg
8. Max boom length:6m
9. Motor rotational speed:6s
|
Model No. |
Open/Close Speed |
Max Boom Length |
Boom-Type |
|
WJDZ801-16 |
6 seconds |
6m |
Straight boom |
|
WJDZ801-13 |
3 seconds |
4.5m |
Straight boom |
|
WJDZ801-115 |
1.5 second |
3m |
Straight boom |
|
WJDZ801-26 |
6 seconds |
5m |
90 degree, Articulated boom |
|
WJDZ801-23 |
3 seconds |
3m |
90 degree, Articulated boom |
|
WJDZ801-36 |
6 seconds |
5m |
180 degree, Articulated boom |
|
WJDZ801-33 |
3 seconds |
3m |
180 degree, Articulated boom |
|
WJDZ801-46 |
6 seconds |
4.5m |
Two-level, fence boom |
|
WJDZ801-56 |
6 seconds |
4m |
Three-level, fence boom |
