|Material Of Motor:||Steel And Aluminum Alloy||Type:||Full-automatic|
|Motor Material:||Steel And Aluminum Alloy|
turnstile entry systems,
pedestrian access control
Functions & Features (Manual Swing Barrier)
1. Single direction passing
2. Be integrated with electric lock
3. Suitable for outside installation
4. Durability, maintenance-free

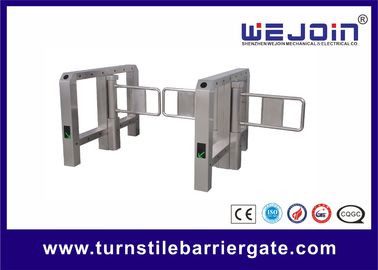

Functions & Features (Full-automatic Swing Barrier)
1. Both directions can be set as controlled mode or free mode.
2. NO mode & NC mode can be switched over by users easily & freely.
3. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
4. Self-examine Function: it is convenient for users to maintain and use.
5. Tailgating-detection function.
6. Intruding-alarm function.
7. Anti-pinch function: protection against finger entrapment and personal injury.
8. Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
9. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
10. Each machine can be set by Physical Address (Optional).
11. Equipped with free control software for man-machine interface & control command SDK.
|Swing Barrier Mechanism|
|Working Environment||Indoor / Outdoor (Shelter)|
|Voltage||220V+-15% or 110V+-15%|
|Driving Motor||24V Brush DC Motor|
|Swing Direction||Single or Bidirectional Operation are Available|
|Input Interface||Dry Contact and Switch Signal Connection|
|Time for Opening or Closing||1 second|
|Starting time after power on||3 seconds|
|Transit Speed||30~40 persons/min|
|Motro Material||Steel and Aluminum Alloy|
|Relative Humidity||≤90%, no condensation|
