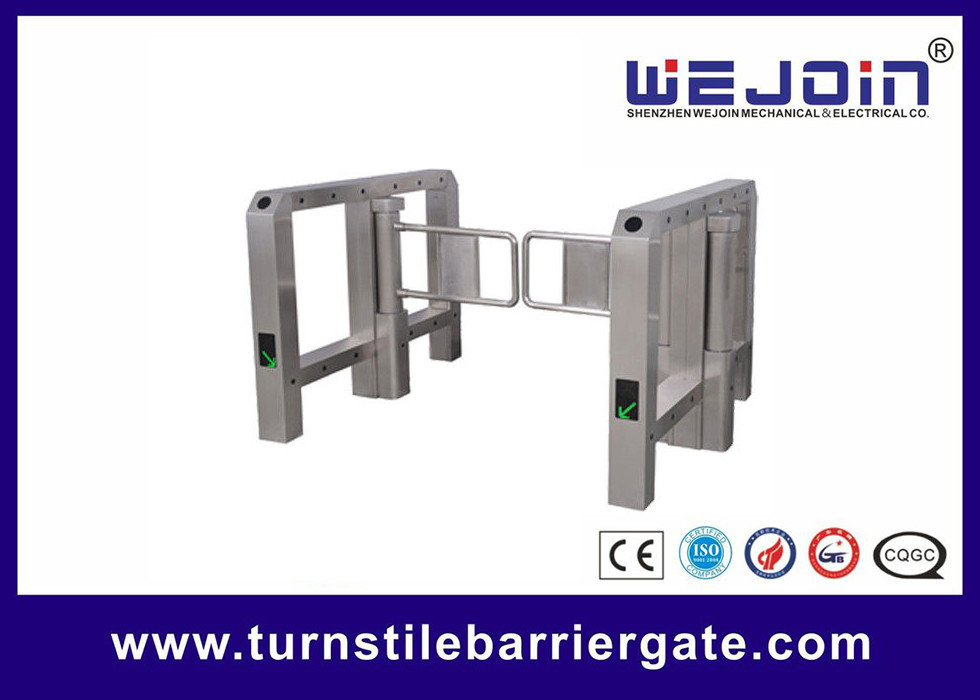

Intelligent Swing Barrier with Automatic Detection Malfunctions Used in HIgh-level Community

Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: WEJOIN
Certification: CE;ISO
Model Number: WJTB106
Minimum Order Quantity: 1+pair
Price: USD+1400-1480+PER PAIR
Packaging Details: WOODEN
Payment Terms: T/T
Supply Ability: 3000+SETS+ PER MONTH
Detail Information
Material Of Motor: Steel And Aluminum Alloy Type: Full-automatic
Motor Material: Steel And Aluminum Alloy Opening Time: 1s
High Light:

speed gate systems

,

waist high turnstiles


Product Description

Functions & Features (Manual Swing Barrier)

1. Single direction passing

2. Be integrated with electric lock

3. Suitable for outside installation

4. Durability, maintenance-free



Functions & Features (Full-automatic Swing Barrier)

1. Both directions can be set as controlled mode or free mode.
2. NO mode & NC mode can be switched over by users easily & freely.
3. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
4. Self-examine Function: it is convenient for users to maintain and use.

5. Tailgating-detection function.
6. Intruding-alarm function.
7. Anti-pinch function: protection against finger entrapment and personal injury.
8. Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
9. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
10. Each machine can be set by Physical Address (Optional).
11. Equipped with free control software for man-machine interface & control command SDK.

Model

Item

Swing Barrier Mechanism
Mechanism Dimension 108*450mm
Working Environment Indoor / Outdoor (Shelter)
Arm Length(Optional) 500-900mm
Voltage 220V+-15% or 110V+-15%
Driving Motor 24V Brush DC Motor
Swing Direction Single or Bidirectional Operation are Available
Input Interface Dry Contact and Switch Signal Connection
Time for Opening or Closing 1 second
Starting time after power on 3 seconds
Transit Speed 30~40 persons/min
Motro Material Steel and Aluminum Alloy
Working Temperature —25°C~50°C
Relative Humidity ≤90%, no condensation
