Quick Opening Access Swing Barrier Gate With Arm Length Is 500-900mm

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJTB103
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: Telex Release, L/C, Western Union
Supply Ability: 50PCS/week
Detail Information
Protection Grade: IP 32 Delivery Time: 7 Workiing Days
Opening Time: 1s
High Light:

speed gate systems


pedestrian gate access control

Product Description

Quick Opening   Access Swing Barrier Gate With Arm Length Is 500-900mm


Quick Detail:



  • Name: Swing Barrier gate
  • Application: Business buliding
  • Material: Stainless steel
  • Feature: Adjustable access directions
  • Voltage: 110V/220V
  • Certificate: CE,ISO
  • Flow speed:30-40 people per minute
  • Opening time:1s
  • Arm length:500~900mm






1. WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.


2. Secondly, WEJOIN swing barriers have a compact electro-mechanical design with unique drive which ensure product durability and silent operation, and its self-lock mechanism can also well protect the access control security.


3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.


4. Fourthly, WEJOIN swing barriers have auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable.


5. Fifthly, WEJOIN swing barriers Alarm for unauthorized access and no accee against passenger flow


6. Sixthly, WEJOIN swing barriers can be integrated with traffic light indicating passenger access

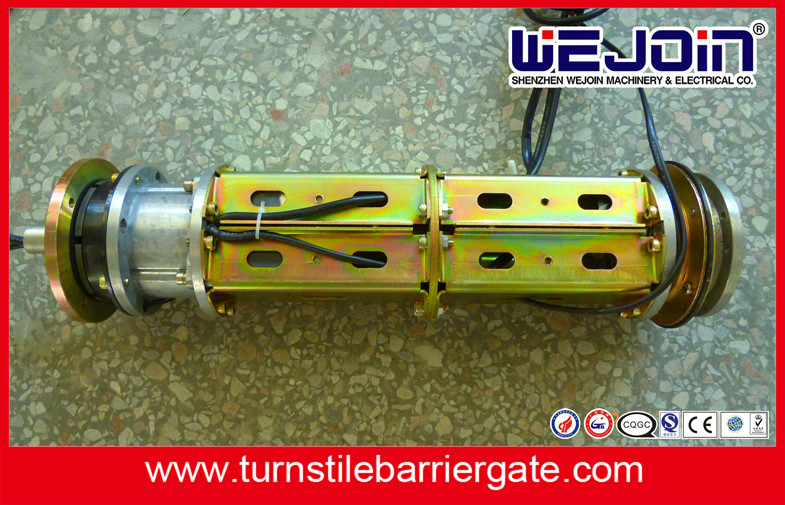

Swing Barrier Mechanism
Mechanism Dimension 108*450mm
  Working Environment  Indoor / Outdoor (Shelter)
Arm Length(Optional) 500-900mm
Voltage 220V+-15% or 110V+-15%
Driving Motor 24V Brush DC Motor
Swing Direction Single or Bidirectional Operation are Available
Input Interface Dry Contact and Switch Signal Connection
Time for Opening or Closing 1 second
Starting time after power on 3 seconds
Transit Speed 30~40 persons/min
Motro Material Steel and Aluminum Alloy
Working Temperature —25°C~50°C
Relative Humidity ≤90%, no condensation
