| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | WITB102 |
| Minimum Order Quantity: | 1PC |
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | Telex Release, L/C, T/T, Western Union |
| Supply Ability: | 50PCS/week |
| High Light: | waist high turnstiles,pedestrian gate access control |
||
|---|---|---|---|

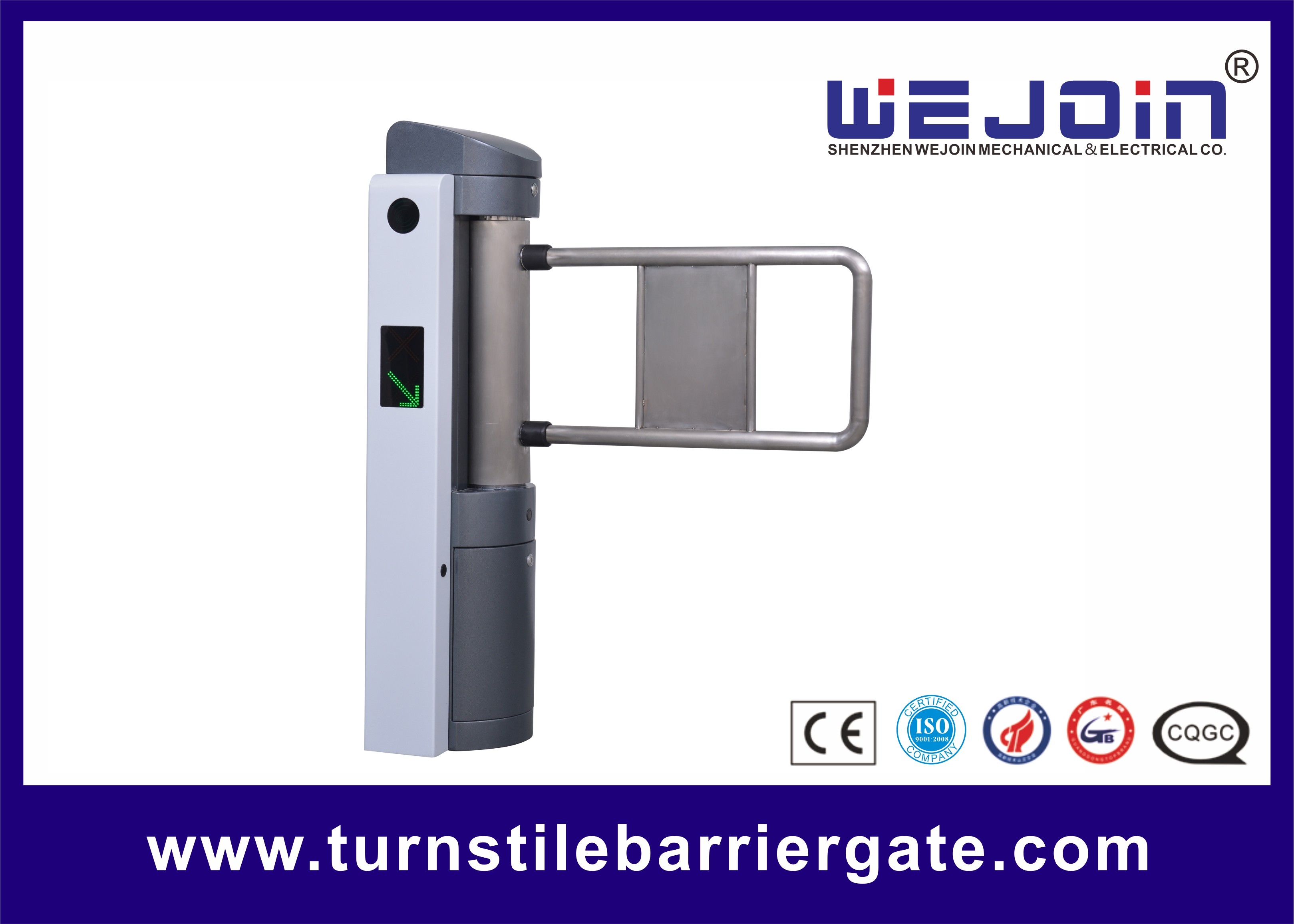

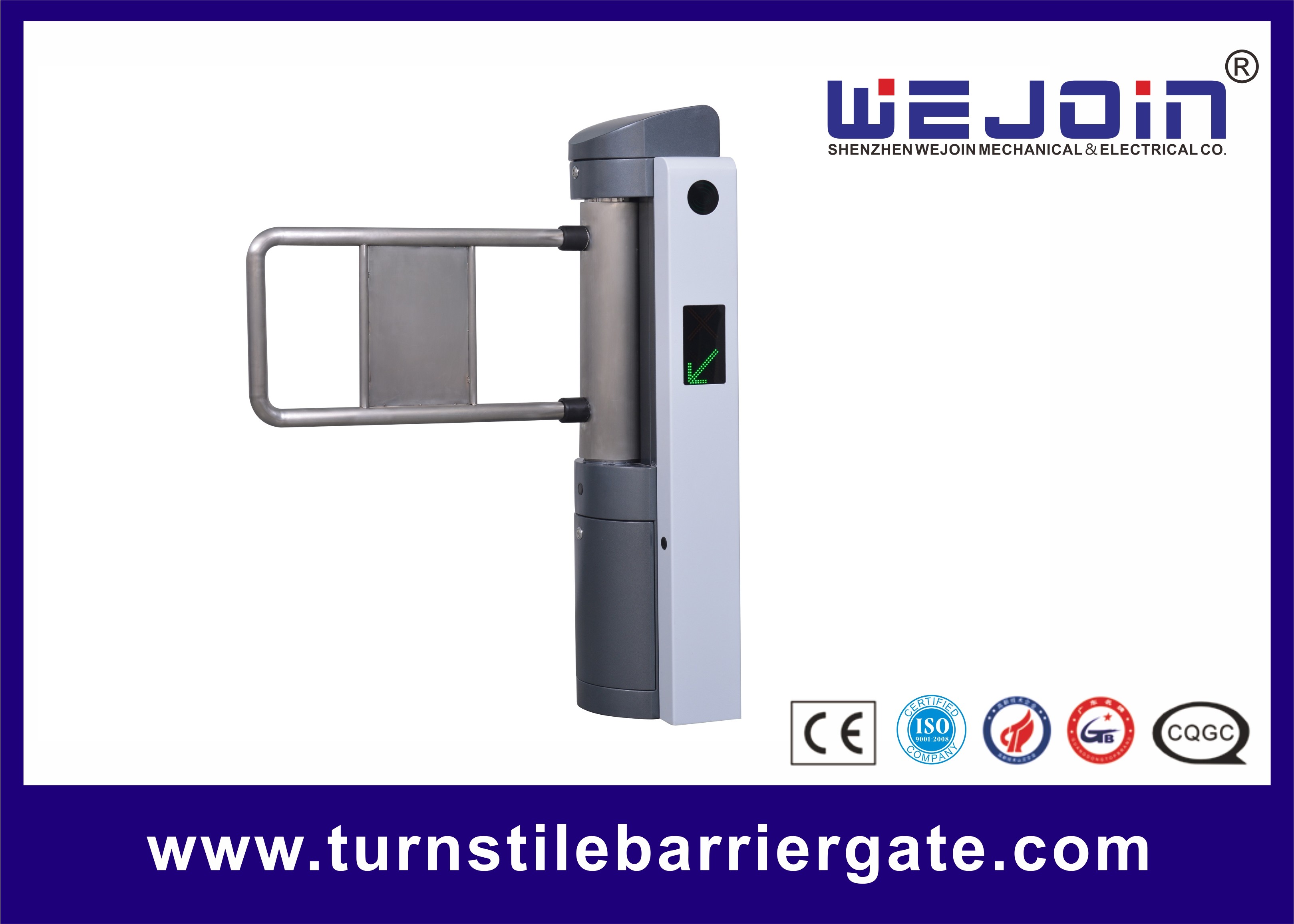

110v / 220v Emergency Interface Automatic Swing Barrier Gate For Safe Pass
Quick Detail:
Description:
1. WEJOIN swing barriers have a compact electro-mechanical design with unique drive which and a self-lock mechanism to ensure product durability and silent operation
2. Secondly, WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.
3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.
4. Fourthly, WEJOIN swing barriers have auto closing function when power on
5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.
6. Sixthly, WEJOIN swing barriers input interface available for dry contact and switch signal connection
Specifications
|
Model Item |
Swing Barrier Mechanism |
| Mechanism Dimension | 108*450mm |
| Arm Length(Optional) | 500-900mm |
| Swing Direction | double direction or single |
| Voltage | 220V+-15% or 110V+-15% |
| Driving Motor | DC24V,brush |
| Motro Material | Steel and Aluminum Alloy |
| Input Interface | Dry Contact and Switch Signal Connection |
| Starting time after power on | 3 seconds |
| Time for Opening or Closing | 1 second |
| Transit Speed | 30~40 persons/min |
| Working Environment | Indoor / Outdoor (Shelter) |
| Working Temperature | —25°C~50°C |
| Relative Humidity | ≤90%, with no condensation |
