|Arm Length:||500-900mm||Interface:||Dry Contact|
|Motor Material:||Steel And Aluminum Alloy||Motor Type:||DC 24 V,Brush|
|Flow Speed:||30-40 People Per Minute|
waist high turnstiles,
pedestrian gate access control

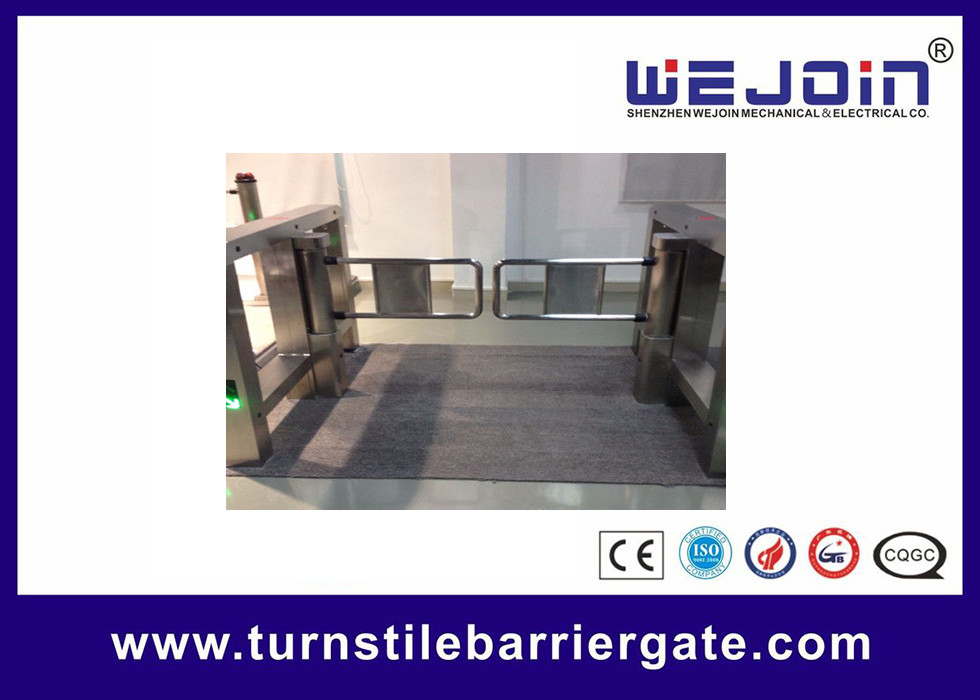

Dry Contact Interface Swing Barrier Gate for Pedestrian With Traffic light
1. WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.
2. Secondly, WEJOIN swing barriers have a compact electro-mechanical design with unique drive which and a self-lock mechanism to ensure product durability and silent operation
3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So customers can connected the swing barrier with different system, like card reader, ticket system, token system and finger printer, etc.
4. Fourthly, WEJOIN swing barriers input interface available for dry contact and switch signal connection
5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.
6. Lastly,WEJOIN swing barriers can be integrated with fire control device, which allow the release on emergency for security consideration.
|Swing Barrier Mechanism|
|Swing Direction||double direction or single|
|Material||Steel and Aluminum Alloy|
|Driving Motor||DC 24V , brush|
|Input Interface||Dry Contact and Switch Signal Connection|
|Voltage Motro||220V±15% ,110V±15%|
|Starting time after power on||3s|
|Time for Opening or Closing||1s|
|Working Environment||Indoor / Outdoor (Shelter)|
|Transit Speed||30~40 persons/min|
|Relative Humidity||≤90%, with no condensation|
