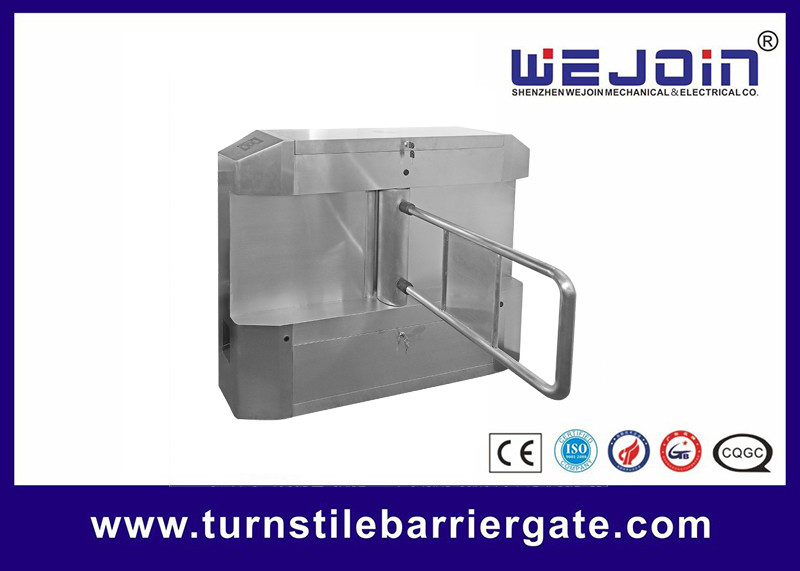

Acrylic plate Arm Turnstile Entry Swing Barrier Gate Systems With Dry Contact Interface

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WITB104
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: Telex Release, L/C, Western Union
Supply Ability: 50PCS/week
Detail Information
Motor Type: DC 24V,BRUSH Opening Time: 1s
Protection Grade: IP 32 Material: 304 Stainless Steel
Communication: RS485 Color: Metallic Silver
High Light:

speed gate systems

,

waist high turnstiles


Product Description

Acrylic plate Arm Turnstile Entry Swing Barrier Gate Systems With Dry Contact Interface


Common Malfunctions and Solutions
1. Power supply is connected, but parts of the system or the whole system is power off.
A.Check whether the 220V AC power socket is well connected or not.
B.Check whether the power output terminal and control board is well connected or not.

C.Check whether the fuse on the control board is broken or not.

2. Giving the open signal, the gate shows no reaction.
A.Check whether the open indicator light on the control board receives the signal or not.

B.Check whether the opening signal lines are dropped or not; and check whether the photocells are working or not.

3. Giving the open signal, one machine can open, but the other one shows no reaction.
First of all check whether the connection lines between these two machines are well connected or not, if it is yes, then check whether the control board can receive the open signal or not, if the answer is still yes, you need to recheck the connection lines and make sure the all the plugs on the control board is well connected.

4. Giving the open signal, it can open but can not close.
A.before fixing the housing, you should make sure that receiving side and transmitting side of the infrared photocell are adjusted and fixed in the right position.
B.Check the infrared photocell in the middle is warded off by some obstacles or not.

C.Check whether lines on the transmitting side of infrared photocell are well connected.



Specifications

Model

Item

Swing Barrier Mechanism

Mechanism Dimension

108*450mm

Arm Length(Optional)

500-900mm

Swing Direction

double direction or single

Voltage

220V±15% ,110V±15%

Driving Motor

DC24V,brush
