|Motor Type:||DC 24V,BRUSH||Opening Time:||1s|
|Protection Grade:||IP 32|
speed gate systems,
pedestrian gate access control

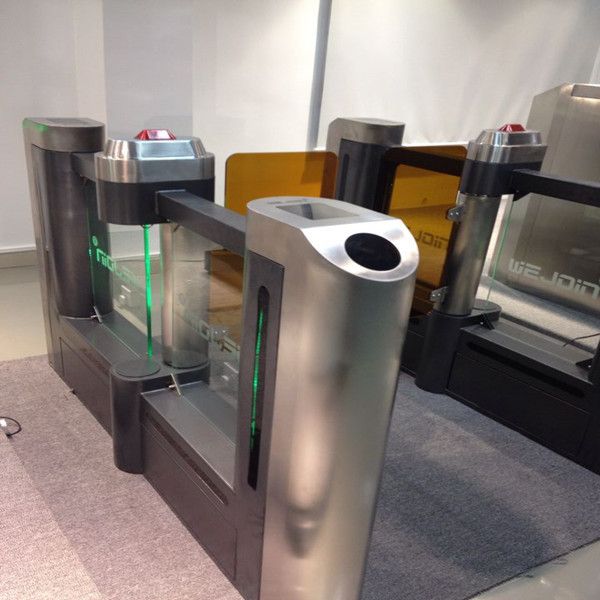

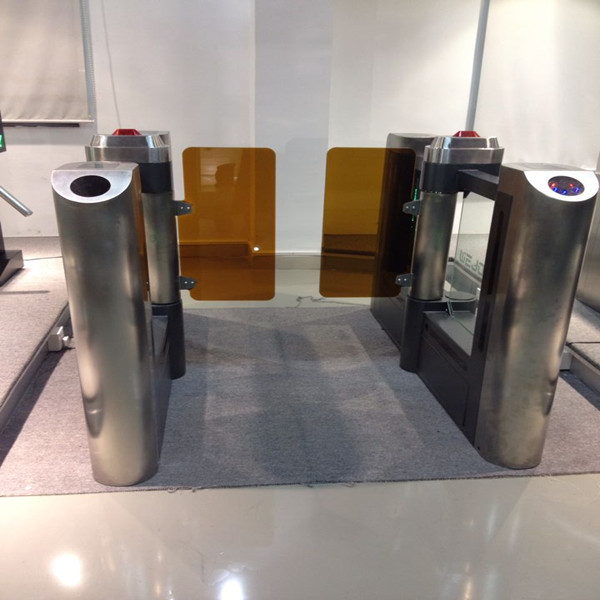

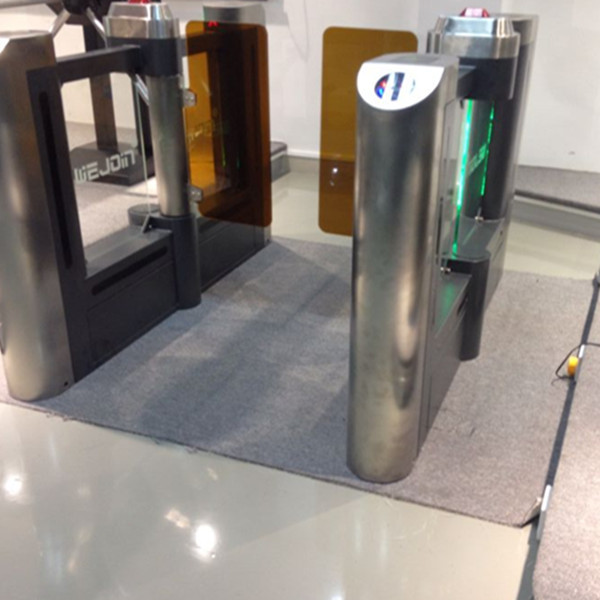

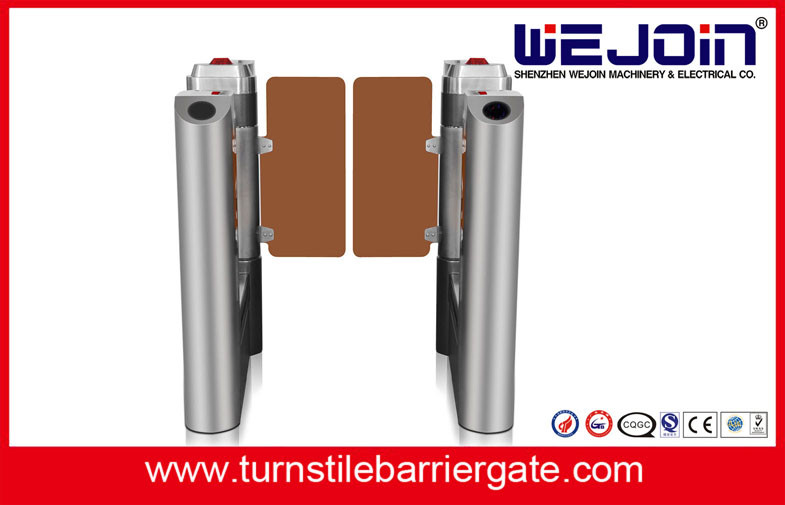

500-900mm Swing Barrier Gate Systems For Passenger Access With Alarm
1. WEJOIN swing barriers have a compact electro-mechanical design with unique drive which and a self-lock mechanism to ensure product durability and silent operation
2.. WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.
3. WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So customers can connected the swing barrier with different system, like card reader, ticket system, token system and finger printer, etc.
4. WEJOIN swing barriers input interface available for dry contact and switch signal connection,after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable.
5. WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.
6. WEJOIN swing barriers can be integrated with fire control device, which allow the release on emergency for security consideration.
|Swing Barrier Mechanism|
|Input Interface||Dry Contact and Switch Signal Connection|
|Material||Steel and Aluminum Alloy|
|Swing Direction||double direction or single|
|Starting time after power on||3s|
|Time for Opening or Closing||1s|
|Voltage Motro||220V±15% ,110V±15%|
|Working Environment||Indoor / Outdoor (Shelter)|
|Relative Humidity||≤90%, with no condensation|
|Transit Speed||30~40 persons/min|
