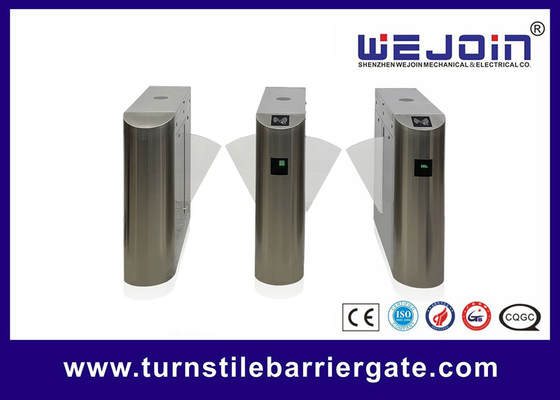

Name: DC Brushless Motor Flap Barrier Gate 304 Stainless Steel 0.6s Running Speed
Brand: WEJOIN
SKU: TYH01
Rating: 4.6 (108 reviews)

DC Brushless Motor Flap Barrier Gate 304 Stainless Steel 0.6s Running Speed

1unit

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Wing: Organic Glass

Function: Anti-collision And Crashworthy

Advantage: High Quality, Service & Factory Price

Operation: Bi-direction

Usage: Metro Station, Office, Library, Hotel

Trade Terms:: EXW,CIF

Highlight:

DC Brushless Motor Flap Barrier Gate

SS304 Flap Barrier Gate

Flap Security Barrier Gate

Basic Infomation

Place of Origin: China

Brand Name: WEJOIN

Certification: ISO,CE

Model Number: TYH01

Payment & Shipping Terms

Packaging Details: Wooden box

Delivery Time: 10-30 days

Payment Terms: T/T, Western Union

Supply Ability: 100PCS/week

Gallery

DC Brushless Motor Flap Barrier Gate 304 Stainless Steel 0.6s Running Speed

Product Description

304 stainless steel 0.6s running speed DC brushless motor flap barrier gate

Speed Gate Functions & Features:

No.	Item	Functions & Features
1	Motor	DC brushless motor, compact structure, large torque, low noise and wear resistance.
2	Control System	Precise control, more flexible running, less mechanical impact and longer service life.
3	Technology	Running speed adjustable, automatic opening when power off, meet different access requirements and have a better experience.
4	Anti-push	Self-adaptive anti-push function, high transformation ratio gear box, increasing torque for strengthen resistance and the stability, reducing the failure rate and cost pressure.
5	Wing	Acrylic or tempered glass optional, shape, size or color can be customized.

Flap Barrier Turnstile

Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier.

Flap Barrier Technical Data:

1. Working Temperature: -25℃～+70℃

2. Power Supply: AC220V±10%

3. Input Voltage of Controller: DC24V ±10%

4. Working Voltage of Motor: DC24V

5. Passing speed: 30-40 people/minute

6. Relative Humidity: 90% (no condensation)

7. Material of Cabinet: 304 stainless steel, sheet metal spraying process

8. Width of Passage: 550mm (a pair)

9. Opening & Closing Speed: 0.6 seconds 10. MTBF: 3,000,000 times

DC Brushless Motor Flap Barrier Gate 304 Stainless Steel 0.6s Running Speed 0
