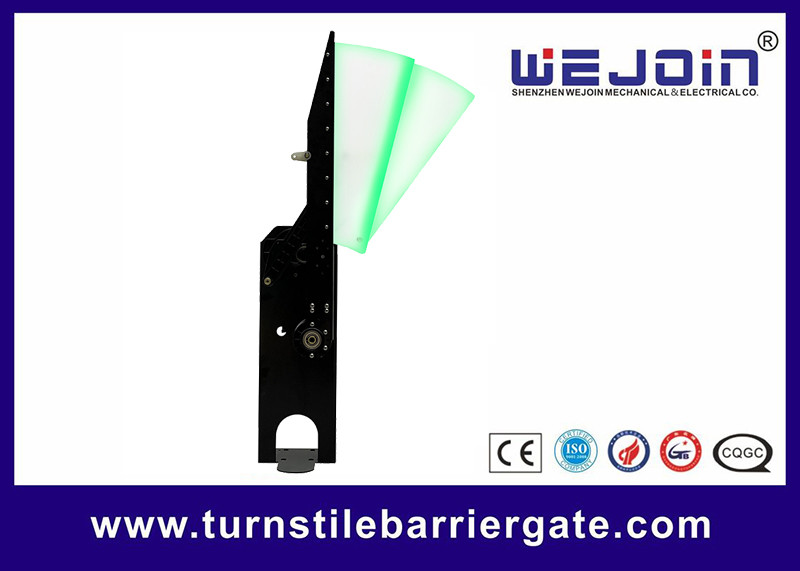

Electronic automatic subway RFID Turnstile Flap Barrier Gate
Flap Barrier Gate Standard Functions Explanation
1. Swiping card access control system
There are three modes to control the passenger to enter and exit
1.1 One is the online mode, it is the computer to monitor the flap to be open and close; only the register can do that.
1.2 The other one is the off line mode, the card number is stored in the member chip by computer, after the card is read, the number will be checked by the MCU and make the correspondent action.
2. Traffic light indicator function:
2.1. Traffic lights on both sides of the flap barrier are the indicator of access status, while the middle traffic light is the indicator of the working status of access control devices;
2.2. When the middle traffic lights turn to green, it means to pass and the red light means no-entry.
2.3. The traffic lights on both sides can be set to indicate access for left or right or bi-direction;
Flap Barrier Technical Data
1. Working Temperature: -20℃～+70℃
2. Power Supply: AC110/220V±10%
3. Input Voltage of Controller: DC24V ±10%
4. Working Voltage of Motor: DC24V
5. Motor Power: 50W
6. Relative Humidity: 90% (no condensation)
Speed Gate Menu Display
| d- Menu | A- Menu | ||
| Code | Function | Code | Function |
| Err | Alarming infor. | roP | Right door opening |
| Per | Access alarming infor. | Clo | Closing |
| StU | Gate status | LoP | Left door opening |
| Ast | Axial status | SE0 | Zero setting |
| PSt | Access status | rSt | Reset |
| dIS | Input IO status | IdE | Auxiliary encoder parameter identification |
| doS | Output IO status | ||
| IrI | IR input status | ||
| Uer | Version infor. | ||
