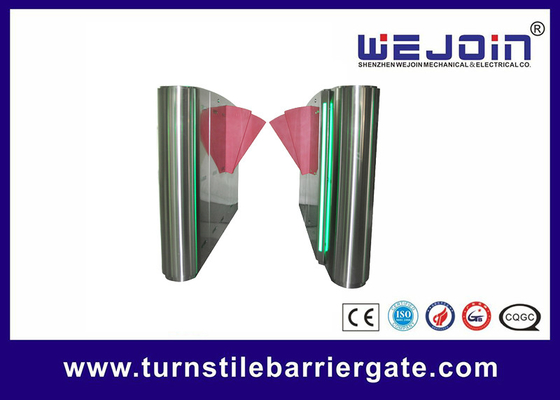

Automatic Flap Barrier with Extanding Flap and LED light Used in High-level Venues

Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: WEJOIN
Certification: CE;ISO
Model Number: WJTY401
Minimum Order Quantity: 1+pair
Price: USD+5500-5580+pair
Packaging Details: carton
Delivery Time: in 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 3000+sets+per month
Detail Information
Stretching-out Flap Width: 275mm The Max Lane Width: 900mm
Motor Voltage: DC12V Product Name: Flap Barrier
Material: 304 Stainless Steel Type: Single Core & Double Core
High Light:

security turnstiles


half height turnstile

Product Description

Automatic Flap Barrier with Extanding Flap and LED light Used in High-level Venues


Product Description

Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.


Main Features

1) A compact clcctro-mcchanical design with unique drive and a self-lock mechanism
2) Automatic detection for malfunctions
3) Input interface available for dry contact and switch signal connection
4) Adjustable auto-dclay closing
5) Infrared photocells for safety access
6) Alarm for unauthorized access and no access against passenger flow
7) Anti-reverse passing
8) Auto-closing when power on
9) Auto-open and free access when power off
10) Adjustable access directions
11) Emergency interface available
12) Traffic light indicating passenger access


Technical Data


Material of Housing

304Stainless Steel

Material of Flap Door

Organic Glass , Resin, or PVC

Thickness of Housing


Width of passage

600 mm & 900 mm

Power supply

220V±10% , 110V±10%


50/60 Hz

Working voltage of motor


Input Interface

Dry contact signal or + 12V level signal or pulse signal with width more than 100ms DC 12V

Normal Life-span

3 million times

Communication Interface

Standard RS485 (distance less than 1200 meters)

Time for Opening or Closing

1 second

Starting time after power on

3 seconds

Automatic reset time after fault

10 seconds

Transit speed

30-40 Persons/min

Working Environment

Indoor / Outdoor (Shelter)

Working Temperature


Relative Humidity

≤90%, no condensation
