|Motor Type:||DC 24V||Opening Time:||1s|
|Protection Degree:||IP32||Housing Material:||304 Stainless Steel|
speed gate systems,
pedestrian gate access control

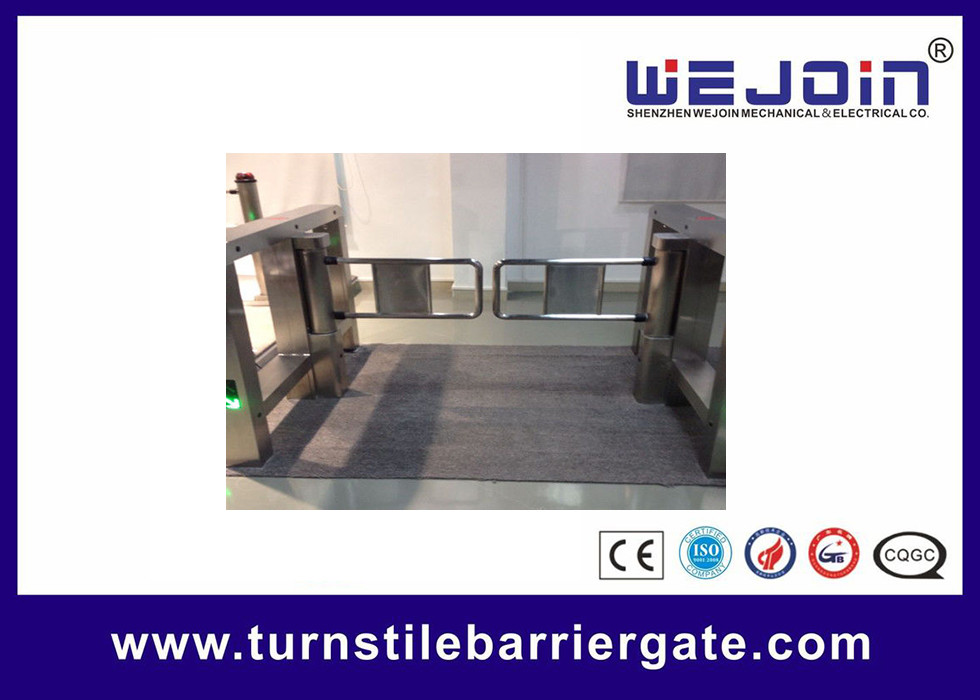

Functions & Features (Manual Swing Barrier)
1. Single direction passing
2. Be integrated with electric lock
3. Suitable for outside installation
4. Durability, maintenance-free
Functions & Features (Full-automatic Swing Barrier)
1. Both directions can be set as controlled mode or free mode.
2. NO mode & NC mode can be switched over by users easily & freely.
3. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
4. Self-examine Function: it is convenient for users to maintain and use.
5. Tailgating-detection function.
6. Intruding-alarm function.
7. Anti-pinch function: protection against finger entrapment and personal injury.
8. Emergency-escape function: the obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
9. With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
10. Each machine can be set by Physical Address (Optional).
11. Equipped with free control software for man-machine interface & control command SDK.
