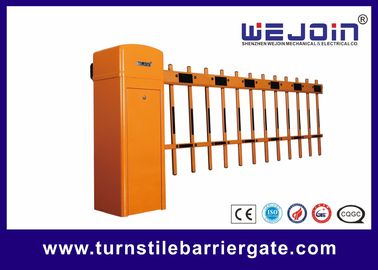

2 Fence Car Parking Vehicle Barrier Gate Crank / Rod Structure For Toll Station

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJDZ801
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 1-20 days
Payment Terms: Western Union, T/T
Supply Ability: 5000 units/weeke
Detail Information
High Light:

security barrier gate

,

traffic barrier gate


Product Description

2 Fence Car Parking Barrier used in Toll Station



Vehicle Barrier Gate Quick Detail:

  • Name: Boom barrier gate

  • Application: Hospital gate

  • Speed:1.5/3/6 second

  • Feature: Crank/rod structure

  • Net Weight: 50KG

  • Voltage:AC220V, AC110V

  • Rated Power:80W

  • Certificate:CE, ISO,



Vehicle Barrier Gate Description:

Model Selection and Differences





Model(WJDZ) Item

801-11

801-13

801-16

801-23

801-26

801-33

801-36

801-46

801-56

Running Time

1.5s

3s

6s

3s

6s

3s

6s

6s

6s

Boom Type

Straight

90°folding

180°folding

2fencing

3fencing

Max Boom Length

3m

4.5m

6m

3m

5m

3m

5m

4.5m

4m

Boom dimension(W*H)

45*80mm

45*100mm

Boom weight

3kg

4.5kg

6kg

6.5kg

8kg

9kg

11kg

7kg

7kg

Voltage

220V/110V

Motor voltage

220v

Frenquency

50/60HZ

Protection Grade

IP44

Working Temperature

-35℃~+60℃

Power

80w



Vehicle Barrier Gate Functions & Features:

1. Open the barrier gate by motor wheel when power off and automatic locking when power on

2. Balanced boom running with a motor transmission of cranks and shafts

3. Boom with protective rubber band

4. Auto-delay when closing (adjustable)

5. Infrared photocells interface is available

6. Loop detector interface is available

7. Well-integrated with car parking system equipments, with wire control (push button)

8. Offering dry contact signal for car parking system (COM, NC, NO)

9. Remote control to operate the barrier gate

10. Interface for traffic light

11. Remote control frequency: 315 MHz, 418MHz, 433MHz

12. Auto-reverse when the boom meets obstruction

13. Wheel manual release. In case of power off,rotate the wheel manual release on the bottom of the motor to raise the boom manually,when power on,the motor will work normally.

14. Machine core with strong and double springs,make the machine core works more steadily



Vehicle Barrier Gate Applications:

Barrier Gate uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.



Vehicle Barrier Gate Specifications

Model

WJDZ801

Working Temperature

-35℃~+60℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

50kgs

Speed

1.5S, 3S, 6S

Max boom length

6 meters



Why to choose WEJOIN Boom Barrier Gate with crank/rod structure?

1. Barrier Gate uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

2. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.

3. Barrier Gate adopts the latest mold casting design, without clutch device. Its machine core adopts connecting rod structure mainly comprised with worm wheel, worm and crank arm. The barrier gate runs stably, and is conveniently maintained.

4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles



Communication with customers

Q: There is no reaction on the motor when pressing the remote controller buttons,why?

A:(1)Please check whether the power is supplied to the barrier gate orr not

   (2)Please check whether the fuse id burnt out or not

   (3)Please check whether the code both in the remote controller and the control board are accordant or not

Q: What's WEJOIN monthly production capacity for barrier gate?

A: 10000 units.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.

Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
