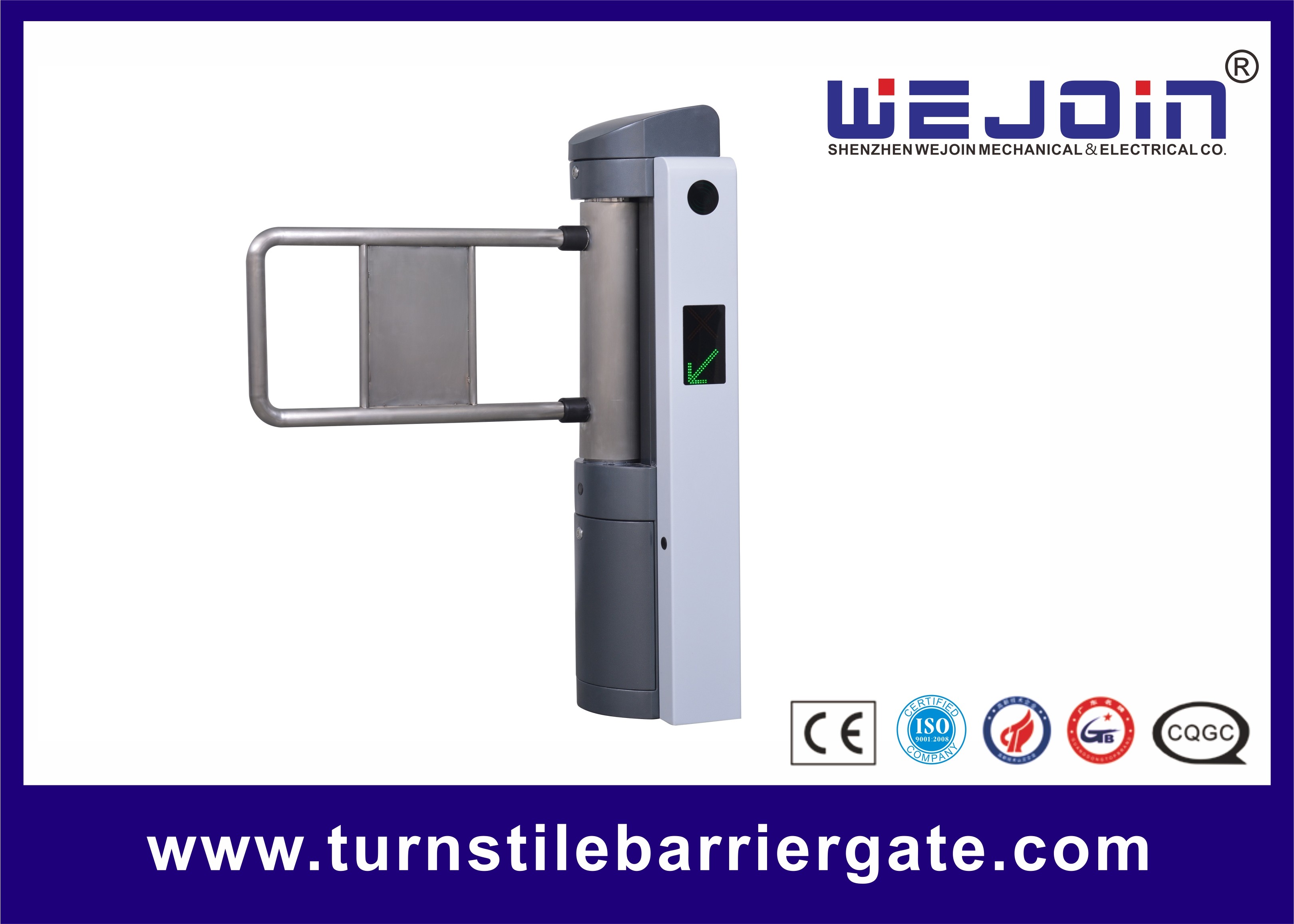

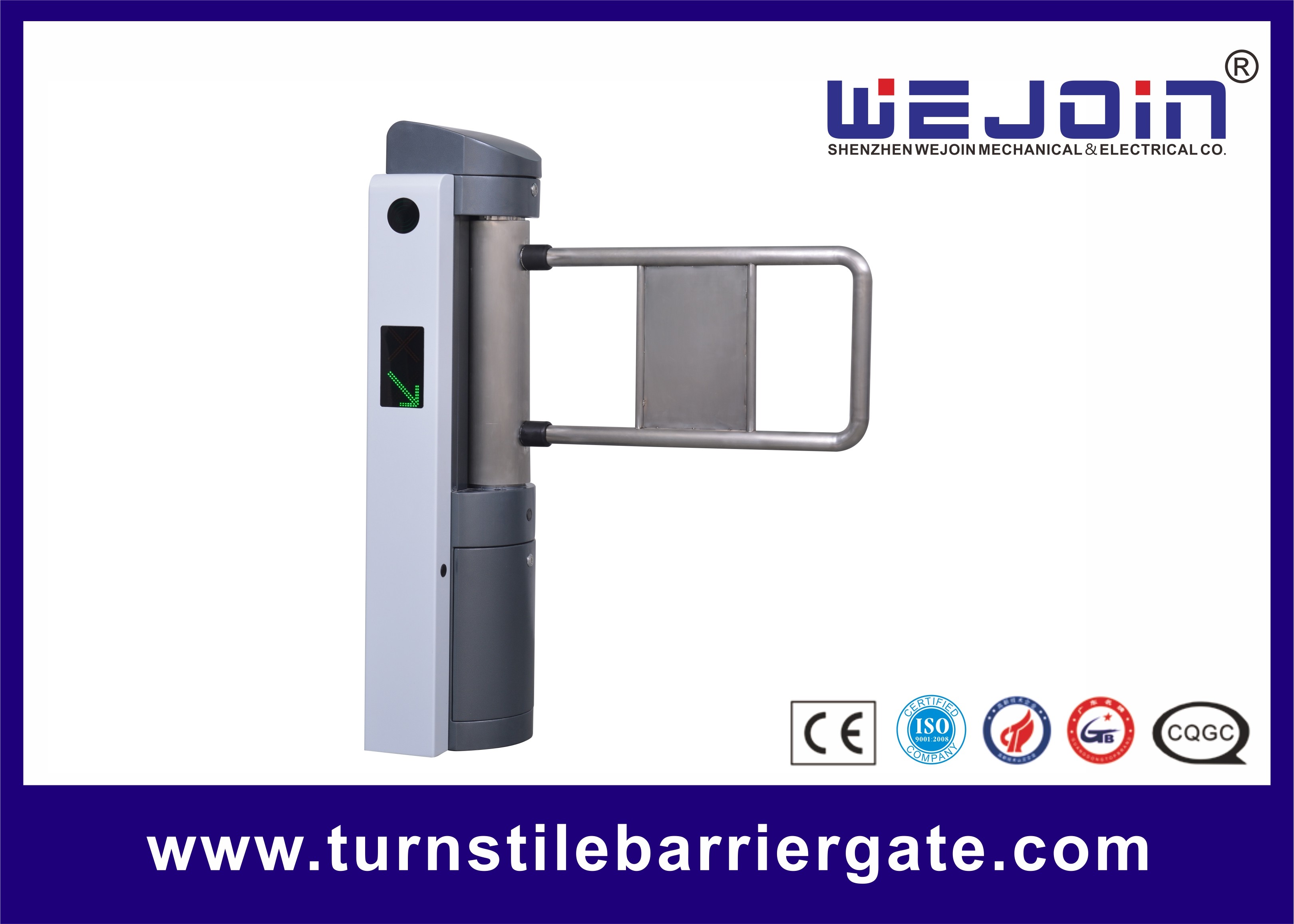

Automatic Access Control Single Pole Automatic Swing Barrier , Pedestrian Access Control Gates

Basic Information
Place of Origin: Shenzhen
Brand Name: WEJOIN
Certification: ISO,CE
Model Number: WJTB102
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Wooden
Delivery Time: 5-7days
Payment Terms: T/T, Western Union
Supply Ability: 2000sets/month
Detail Information
Housing Material: Stainless Steel Power Supply Frequency: AC220V±10%, 50HZ,AC110±10%, 60HZ
Drive Motor: DC 24V, Brush Mechanism Dimension: 108*450mm
Arm Length: 500~900mm Flow Speed: 30~40 People Per Minute
Opening Time: 1s
High Light:

speed gate systems


pedestrian gate access control

Product Description

Functions and features

1.a compact electro-mechanical design with unique drive and a self-lock mechanism

2. automatic detection for malfunction

3. input interface for dry contact and switch signal connection

4. adjustable auto-delay closing

5. infrared photocells for safety access

6. alarm for unauthorized access and no access against passenger flow

7. anti-reversing passing

8. auto closing when power on

9. auto open and free access when power off

10. adjustable access directions

11. emergency interface available

12. traffic light indicating passenger access



Technical data

1.Housing material: stainless steel 304

2.Power supply/frequency: AC220V±10%, 50HZ,AC110±10%, 60HZ

3.Drive motor: 24V direct current brush motor

4.Flow speed: 25~30person/minute

5. Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM     NO).

6.Opening and closing time: 0.5 minute

7.Power on and reset time: 3s

8.IP protection degree: IP 32

9.Working environment:

10.Inner and outer (with shelter)

11.Temperature: -25ºC~+50ººC

12.  Relative humidity: ≤90%
