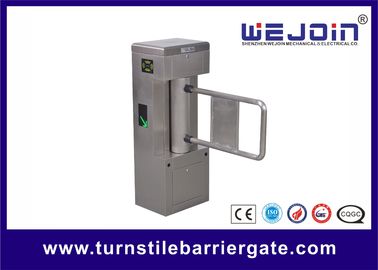

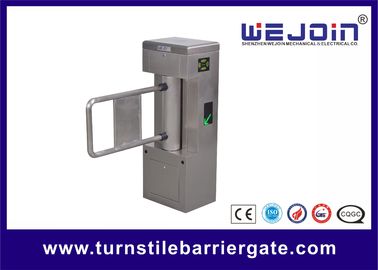

Automatic Swing Barrier Gate With 24V Direct Current Brush Motor Used In Bus Station

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: ISO,CE
Model Number: WJTB103
Minimum Order Quantity: 2sets
Packaging Details: wooden
Delivery Time: 5-7days
Payment Terms: T/T, Western Union
Supply Ability: 2000sets/month
Detail Information
Housing Material: 304 Stainless Steel Power Supply Frequency: AC220V±10%, 50HZ,AC110±10%, 60HZ
Drive Motor: 24V Direct Current Brush Motor Flow Speed: 30-40 People Per Minute
First-time Power On For The Full Recovery: 3s Arm Length: 500-900mm
Mechanism Dimension: 108*450mm
High Light:

speed gate systems


waist high turnstiles

Product Description

Automatic Swing Barrier Gate With 12V Direct Current Brush Motor Used In Bus Station


Functions and features

1. a compact electro-mechanical design with unique drive and a self-lock mechanism

2. automatic detection for malfunction

3. input interface for dry contact and switch signal connection

4. adjustable auto-delay closing

5. infrared photocells for safety access

6. alarm for unauthorized access and no access against passenger flow

7. anti-reversing passing

8. auto closing when power on

9.  auto open and free access when power off

10. adjustable access directions

11. emergency interface available

12.   traffic light indicating passenger access


Technical data

1. Housing material: stainless steel 304

2. Power supply/frequency: AC220V±10%, 50HZ,  AC110±10%, 60HZ

3. Drive motor: 24V direct current brush motor

4. Flow speed: 30~40minute

5. Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).

6. Opening and closing time: 0.5 minute

7.  Power on and reset time: 3s

8. IP protection degree: IP 32


10. Temperature: -25ºC~+50ººC

11.  Relative humidity: ≤90%
