IP32 High Security Swing Barrier Gate System With Bi-direction

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WITB106
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: Telex Release
Supply Ability: 50PCS/week
Detail Information
High Light:

speed gate systems

,

pedestrian gate access control


Product Description

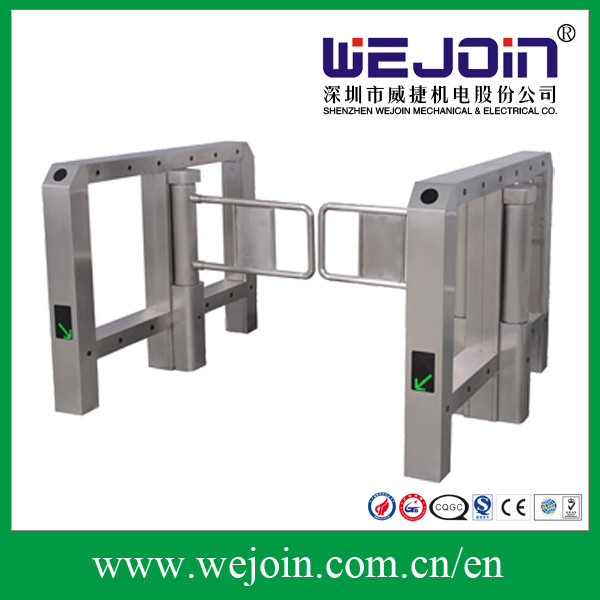

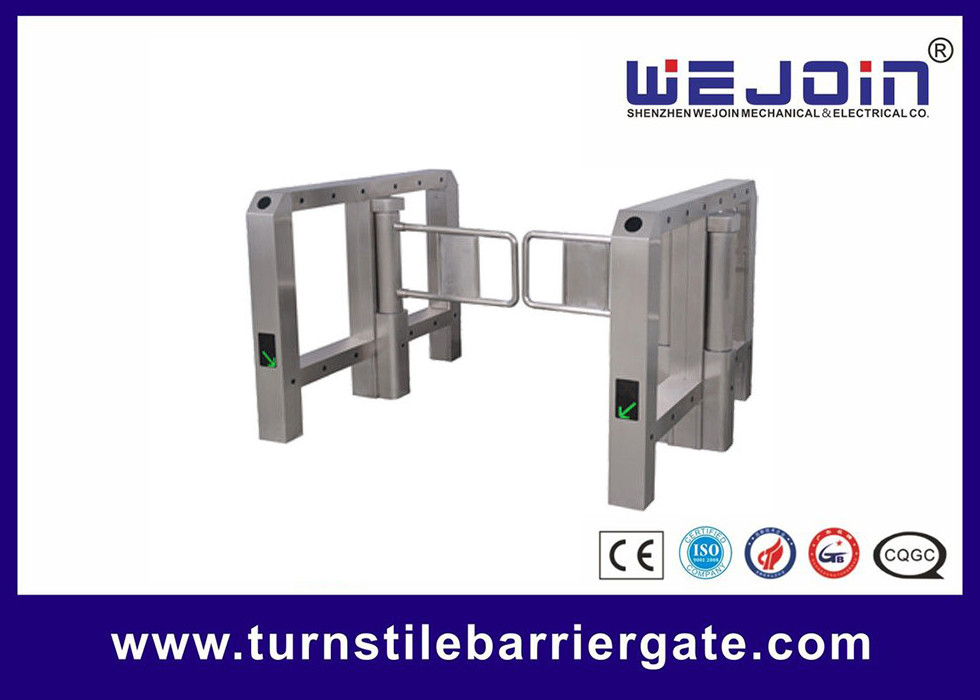

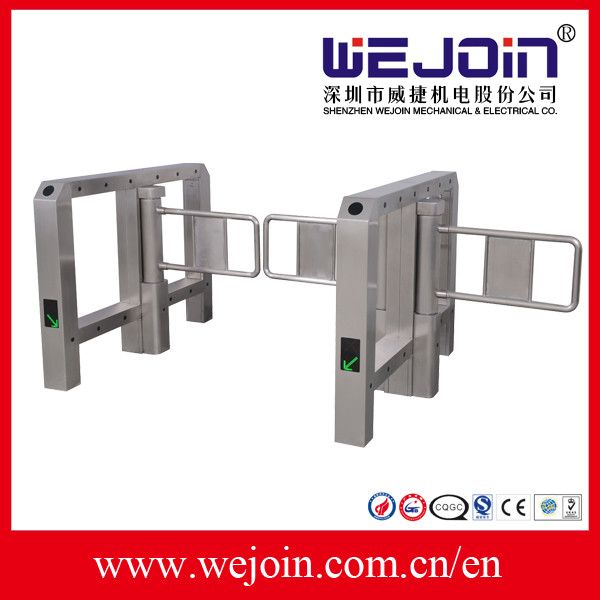

IP32 High Security Swing Barrier Gate System With Bi-direction



Functions and features



 1.a compact electro-mechanical design with unique drive and a self-lock mechanism



2. automatic detection for malfunction



 3.  input interface for dry contact and switch signal connection



4.  adjustable auto-delay closing



5.  infrared photocells for safety access



6. alarm for unauthorized access and no access against passenger flow



7. anti-reversing passing



8. auto closing when power on



9. auto open and free access when power off



10. adjustable access directions



11. emergency interface available



12. traffic light indicating passenger access





Technical data



1. Housing dimension: bridge type bevel angle 1400*270*1000mm



2.Flap arm length: 275mm



3. Max arm width: 900mm



4.Housing material: stainless steel 304



5. Power supply/frequency: AC220V±10%, 50HZ,  AC110±10%, 60HZ



6. Drive motor: 12V direct current brush motor



7..Flow speed: 25~30/minute



8.Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).



9.   Opening and closing time: 0.5 minute



10.    Power on and reset time: 3s



11.    IP protection degree: IP 32



12.    Working environment:



13.   Inner and outer (with shelter)





Description:



1. WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.



2. Secondly, WEJOIN swing barriers have a compact electro-mechanical design with unique drive which and a self-lock mechanism to ensure product durability and silent operation



3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.



4. Fourthly,  WEJOIN swing barriers input interface available for dry contact and switch signal connection



5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.



6. Lastly,WEJOIN swing barriers can be integrated with fire control device, which allow the release on emergency for security consideration.





Specifications





Model

Item

Swing Barrier Mechanism
Arm Length(Optional) 500-900mm
Mechanism Dimension 108*450mm
 Swing Direction double direction or single
Voltage 220V±15% ,110V±15%
Driving Motor DC24V,brush
 Input Interface Dry Contact and Switch Signal Connection
Motro Material Steel and Aluminum Alloy
 Starting time after power on  3s
Time for Opening or Closing 1s
Transit Speed 30~40 persons/min
Working Environment Indoor / Outdoor (Shelter)
Working Temperature —25°C~50°C
Relative Humidity ≤90%, with no condensation
